Introduction

Chainalysis Know Your Transaction (KYT) is an automated cryptocurrency transaction monitoring and compliance solution. At the core of KYT is a REST-based API that provides you with transaction risk monitoring, alerts on risky transfers, and comprehensive user risk profiles, among other features. The API allows your internal business systems and Chainalysis's technology to communicate with each other.

Getting started

Registering transfers is required to get the total value of KYT: transaction screening, generating alerts, and building user and transaction risk profiles, among other features.

You can submit transfers via the API and KYT will provide insights on the transfer and counterparty involved. KYT will automatically monitor each transaction posted for changes in exposure and counterparty risk. All alerts, user risk scores, and transfer profile updates will be reflected in both the KYT Dashboard and API responses.

See the KYT integration guide below for information on integrating with the API including, various implementations and example compliance workflows.

About the KYT API

KYT’s API is a REST-based web service that:

• Has uniform resource endpoints (alerts, /transfers/sent).
• Accepts a request body (your data).
• Uses standard HTTP response codes (200, 404, 503).
• Returns responses in JSON.

After integrating your data into KYT, the API provides you a more comprehensive picture of risky activity. It returns additional information on transfers, alerts, and user risk that the KYT UI doesn't provide alone.

Sorting and filtering are available on many endpoints to help facilitate workflows. For example, you can query for all alerts created between certain dates, see exposure details on a specific user, or pre-screen for counterparty risk within your withdrawal workflow.

All times are in UTC.

What's new

See below for KYT API releases, updates, and changes.

July 9, 2021

We've updated our KYT API docs to restructure and reframe our endpoints. We believe the new structure brings more clairity to our API. It is important to note that both v1 and v2 endpoints are comptaible. We've included a new API implementation that details how you might integrate with our API. We've renamed our old integration guide to Legacy implementation.

May 27, 2021

We've recently released a new endpoint, POST: alert status and comment.

You can now make a POST request to change an alert's status and include a comment, giving you the ability to action historic alerts programmatically and ensure your case management syncs with KYT. View the endpoint here.

March 31, 2021

We've recently added Algorand as a supported asset.

For your transfers, KYT includes staking rewards where present. Algorand block explorers display staking rewards separately from the main payment transfer(s). Therefore, block explorers may introduce a discrepancy in the output index, e.g. a block explorer presents a counterparty at position 0, yet our representation shows the same counterparty at position 2. For this reason, you should include the output address, rather than output index, in transfer references for your KYT API requests.

View all the assets that Chainalysis supports here.

October 28, 2020

We’ve recently added support for another 16 ERC-20 tokens. These include DeFi tokens, one of the most exciting and talked about areas of crypto, and a tranche of stable coins. Chainalysis now supports over 100 cryptocurrency assets. See the complete list of assets that KYT suppports here.

June 8, 2020

Chainalysis has launched support for two notable cryptocurrencies: Dash and Zcash. As two of the most popular so-called “privacy coins” — cryptocurrencies with privacy enhancing features encoded into their protocols — they account for over $1.5 billion of reported daily trading volume.

Our latest blog post explains how these two privacy coins allow investigators and compliance professionals to investigate and monitor illicit activity using our products.

See all cryptocurrencies that Chainalysis supports here.

May 26, 2020

KYT has introduced a new user risk score calculation that's easier to understand, customize, and control.

• There will be a new property in the API called riskScore, found in GET /users and GET /users/{userId}. It returns the risk score based on the new model as SEVERE, HIGH, MEDIUM, and LOW.

• The score property in the API, based on the legacy model, will remain. SEVERE and HIGH will be returned as red, MEDIUM as amber, and LOW as green. However, we recommend using the riskScore field going forward.

• Note that this is an additive change; no existing fields will be removed.

March 12, 2020

Chainalysis has added 43 new tokens, more than doubling the number of ERC-20 tokens we support. KYT can now help you understand what’s happening with 97% of the total value in ERC-20s and over $1 billion of ERC-20 transfers every day. See a complete list of assets that KYT suppports here.

February 11, 2020

• XRP is now available in Chainalysis! XRP is the cryptocurrency best known as a payment protocol for remittances, payment settlement, and the exchange of assets. It is the native currency of Ripple, a company that works with financial institutions to enable fast and low cost global payments. See the Assets section for more information.

December 10, 2019

• Ethereum Classic (ETC) is now supported in Chainalysis! Ethereum Classic is an alternate version of Ether.
• Register ETH smart contract transfers in KYT using a new transfer reference: "transaction hash:output address".

December 5, 2019

• You can now sort and filter alerts via the API. Sort GET /alerts by timestamp, createdAt, level, and alertAmountUsd, and filter by level. Read more about alert sorting and filtering capabilities here.

October 16, 2019

• KYT has released support for many new ERC-20s including LINK, CRPT, MCO, CRO, GNO, HT, MLN, LEO, WETH, ZIL, TGBP, REP, HOLD, AUDX, CADX, CHFX, CNYX, EURX, GBPX, GLDX, NZDX, RUBX, SLVX, USDEX, JPYX, HUSD, PAXG, and BUSD. See a full list of all coins that KYT supports here.

September 25, 2019

• Send data to the KYT API for hundreds of assets we don’t yet support. Implement the KYT API once and no changes are required when we support a new asset.
• Filter the /alerts KYT API endpoint by transferReference and asset.

August 6, 2019

• Alert information is now available via the KYT API. Users can use this API to integrate KYT Alerts into your own internal tools. See here for more information.

July 23, 2019

• ZRX, BAT, OMG, and MKR are now supported in the API.

API configuration

API request header & authentication

Example request header:

curl -X GET "https://test.chainalysis.com/api/kyt/v1/assets" \
  --header "Token: <API_KEY>" \
  --header "Accept: application/json"

Note: Make sure to replace <API_KEY> with your API key.

• API calls must include an API Key for authentication.
• API calls must include the appropriate Accept: application/json in the request header.

KYT environments

Example test server request:

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/user_547/transfers/sent' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data '[{"asset": "BTC", "transferReference": "9aaaea1ce7d863e18d82f7ea331f9521a2c4fb7cbddd784001cd32ac28952cb5:0"}]'

We recommend using the Test Environment for initial API integration and validation. Once this is done, you can replace the API Key and URL to switch your integration to the KYT Production environment.

Security: All KYT API access is secured using HTTPS with TLS (v1.2) being supported.

Test environment URLs:

• Chainalysis KYT Dashboard https://kyt.test.chainalysis.com
• Chainalysis KYT API Endpoint https://test.chainalysis.com/api/kyt
• Chainalysis Reactor https://test.chainalysis.com

Production environment URLs:

• Chainalysis KYT UI https://kyt.chainalysis.com
• Chainalysis KYT API Endpoint https://api.chainalysis.com/api/kyt
• Chainalysis Reactor https://reactor.chainalysis.com

Generating API keys

You can create API keys from the Setting option in KYT's Account menu.

To create an API key:

1. Log into the KYT environment (Test or Production) for which you want to generate an API key
2. From the Account drop-down menu, click Settings.
3. Click the Generate API Key button. Your API key appears below.

You can also obtain an API key in the Settings menu in Chainalysis Reactor.

API response pagination

In the following example, the query parameters of "limit": 25 and "offset": 3 would display items 3-28 in the result set of 100 total items.

Note that the "data" array would typically display the data queried for these objects but has been truncated for this example.

The KYT API supports pagination for endpoints that return long lists of objects. Pagination allows you to retrieve a limited set (or subset) of results and to offset those results. Responses are displayed using total, limit, and offset. To see a different page, append the parameters limit and/or offset to the GET request.

{
  "total": 100,
  "limit": 25,
  "offset": 3,
  "data": [
    ...
  ]
}

Optional pagination parameters

Parameter Name	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

• total represents the total number of objects that answer the query, including the ones that are not displayed.
• data is an array of the data you requested.

If there is no data to be returned, the data array will be empty.

Integration

You must complete an API integration to populate your data for risk reporting and case management in the KYT dashboard. The integration can be tested in a test environment, then once completed, moved to the production environment. See KYT Environments above for more information about the test and production environments.

Tips

• You must have a valid API key and be using live mainnet data, or else you will receive 400 or 403 responses.
• All API access is over HTTPS.
• Data is sent and received in JSON format.
• Arguments are sent in the request body with the exception of the API key (Token), which is sent as a header.
• Blank fields are included as null instead of being omitted.
• TLS (v1.2) is supported.
• There is no rate limiting for the API.

Moving from test to production

1. Access the test environment
   Log in with your test credentials (obtained via email) and generate your API key for the test environment (links above).

2. Make successful requests on test server
   Ensure successful requests have been made on the test server (transfers/sent, transfers/received, etc).

3. Set up compliance workflows and verify that requests are aligned in the test environment
   <!-- See our suggested compliance workflows here. -->

4. Move from the test environment to the production environment
   Log in with your production credentials (obtained via email) and generate your API key for the production environment (URLs provided above).

You will need to regularly post new transfers to the KYT API. Each transfer needs to be posted to the API only once, and KYT will continuously monitor counterparties and transaction flows. If transfers are accidentally posted more than once, this will not have an effect.

API implementation

The API implementation guide details two common use cases:

• Crediting a user's funds upon deposit.
• Processing withdrawals.

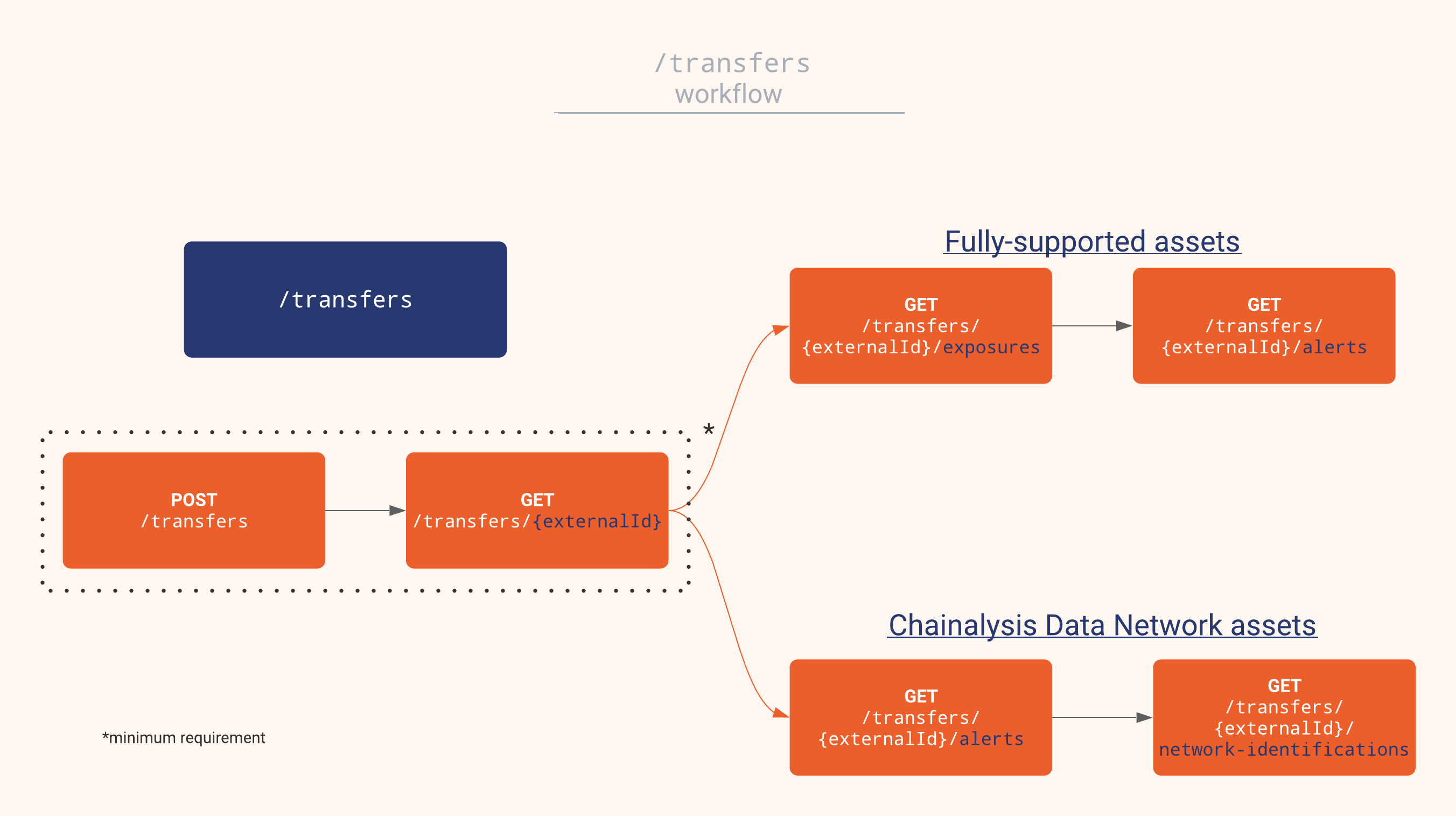

Crediting a user’s funds

Typically, services do not have control over received transfers. This guide details how to use KYT data to take programmatic action when receiving a user deposit. Outlined below is an example describing how to use the KYT API to navigate received deposits.

When you receive a user deposit:

1. Call the POST /v2/users/{userId}/transfers endpoint. Be sure to indicate the "direction" as "RECEIVED" in the request body. If successful, you will:
   1. Receive a 202 response.
   2. Receive an external identifier (externalId). Store this external identifier in your system for later use.

2. Call the GET /v2/transfers/{externalId} summary endpoint using the externalId received in step 1. You will need to poll this endpoint until updatedAt is no longer null. Once populated, KYT generates alerts according to your organization’s alert rules.

   Note: How quickly the updatedAt field populates depends on how many confirmations Chainalysis requires before processing transactions for a given asset. Some require fewer confirmations or are quicker than others. Learn more in the Polling summary endpoints section.

3. Once the updatedAt field populates, determine whether the asset is fully-supported or part of Chainalysis’s Data Network (CDN) and follow the corresponding procedure below.

User deposits and fully-supported assets

With fully-supported assets, you can retrieve the following additional information about the transfer:

• Direct exposure information, if available.
• Alerts, if available.

To retrieve additional information about your received transfer:

1. Call the GET /v2/transfers/{externalId}/exposures endpoint to retrieve any available direct exposure information.
2. Call the GET /v2/transfers/{externalId}/alerts endpoint to retrieve any generated alerts specific to this transfer.

User deposits and CDN assets

For CDN assets, you can retrieve the following additional information about the transfer:

• Alerts, if available.
• Network Identifications, if available. Learn more about Network Identifications here.

To retrieve additional information about your received transfer:

1. Call the GET /v2/transfers/{externalId}/alerts to retrieve any generated alerts specific to this transfer.
2. Call the GET /v2/transfers/{externalId}/network-identifications endpoint to retrieve the counterparty name for any asset and transaction hash matches.

Note: Depending on the transfer, direct exposure information may be available. To check, try calling GET /v2/transfers/{externalId}/exposures endpoint.

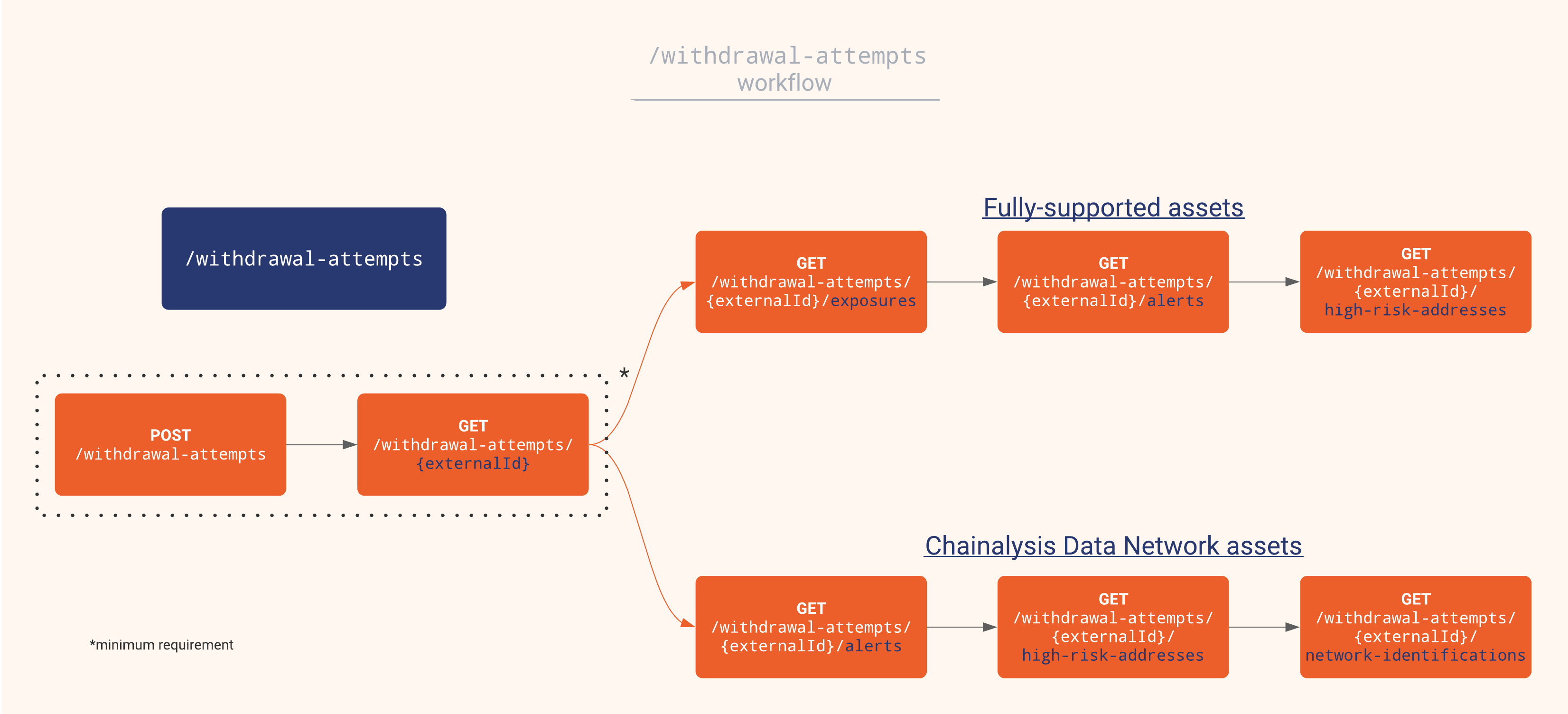

Processing withdrawals

Sometimes services do not have information about the counterparty where their users attempt to make a withdrawal. This guide details how to use KYT data to take programmatic action when users attempt withdrawals. Outlined below is an example describing how to use the KYT API to navigate withdrawal attempts.

When a user attempts a withdrawal:

1. Call the POST /v2/users/{userId}/withdrawal-attempts endpoint. If successful, you will:
   1. Receive a 202 response.
   2. Receive an external identifier (externalId). Store the external identifier in your system for later use.
2. Call the GET /v2/withdrawal-attempts/{externalId} summary endpoint, using the externalId received in step 1. You will need to poll this endpoint until updatedAt is no longer null. Once populated, KYT generates alerts according to your organization’s alert rules.
3. Once the updatedAt field populates, determine whether the asset is fully-supported or part of Chainalysis’s Data Network (CDN) and follow the corresponding procedure below.

Withdrawal attempts and fully-supported assets

With fully-supported assets, you can retrieve the following additional information:

• Direct exposure information, if available.
• Alerts, if available.
• Chainalysis Identifications, if available.

To retrieve additional information about your withdrawal attempt:

1. Call the GET /v2/withdrawal-attempts/{externalId}/exposures endpoint to retrieve any counterparty exposure information.
2. Call the GET /v2/withdrawal-attempts/{externalId}/alerts endpoint to retrieve any available alerts specific to this counterparty.
3. Call the GET /v2/withdrawal-attempts/{externalId}/high-risk-addresses to check if the counterparty has any Chainalysis Identifications.
4. After successfully processing a user’s withdrawal, call the POST /v2/users/{userId}/transfers endpoint and indicate the "direction" as "SENT"to register the transfer for ongoing monitoring.

Withdrawal attempts and CDN assets

With CDN assets, you can retrieve the following additional information:

• Alerts, if available.
• Chainalysis Identifications, if available.
• Network Identifications, if available. Learn more about Network Identifications here.

To retrieve additional information about your withdrawal attempt:

1. Call the GET /v2/withdrawal-attempts/{externalId}/alerts endpoint to retrieve any alerts specific to the counterparty.
2. Call the GET /v2/withdrawal-attempts/{externalId}/high-risk-addresses to check if the counterparty has any Chainalysis Identifications.
3. Call the GET /v2/withdrawal-attempts/{externalId}/network-identifications endpoint to retrieve the counterparty name of any asset and transaction hash matches.
4. After successfully processing a user’s withdrawal, call the POST /v2/users/{userId}/transfers endpoint and indicate the "direction" as "SENT"to register the transfer for ongoing monitoring.

Polling the summary endpoints

How long to poll the summary endpoints ultimately depends on the particular Blockchain and its number and speed of confirmations.

Transfers example

For the /transfer endpoints, assuming you have made the initial POST request after a Bitcoin block has been mined, most transfers process in less than a minute. However, we still suggest polling for at least a few minutes if the updatedAt field has not yet populated. In cases when the updatedAt field is still null after a number of minutes, we suggest setting a policy about how long to wait before crediting a user's account.

Most services require at least a few confirmations before crediting a user's funds, which usually takes many minutes. It is during this time that you can begin polling the GET /transfers/{externalId} endpoint.

Withdrawal attempts example

The /withdrawal-attempts endpoints do not depend on a new block being mined. Therefore, the expected polling time is shorter. Nonetheless, we still recommend setting a policy for how long to wait in the case where updatedAt returns null for an extended amount of time.

Processing times for each chain

The number of confirmations required to process a transfer differs for each chain. Assuming a block has been mined, typically, BTC, ETH and ERC-20s, LTC, and BTC are processed within five seconds of the first confirmation. However, both DASH and ZEC require 30 confirmations and those confirmations take approximately 80 minutes for DASH and approximately 30 minutes for ZEC. On the other hand, DOGE requires 40 confirmations which take approximately 40 minutes.

Legacy implementation

Suggested implementations of the Chainalysis KYT API are detailed below, increasing in complexity and the amount of functionality you will receive. You can choose to work entirely in the KYT user interface (UI), or build a response within your own internal systems based on feedback and analysis from Chainalysis.

Building the analysis and data from the KYT API into your internal system provides robust functionality and gives you a more comprehensive picture of your risk. We suggest reviewing example compliance workflows to help assess which implementation best meets your needs.

At minimum, the two major endpoints required for integration are: /transfers/sent and /transfers/received. For basic functionality, you must execute at least those two requests.

Overview

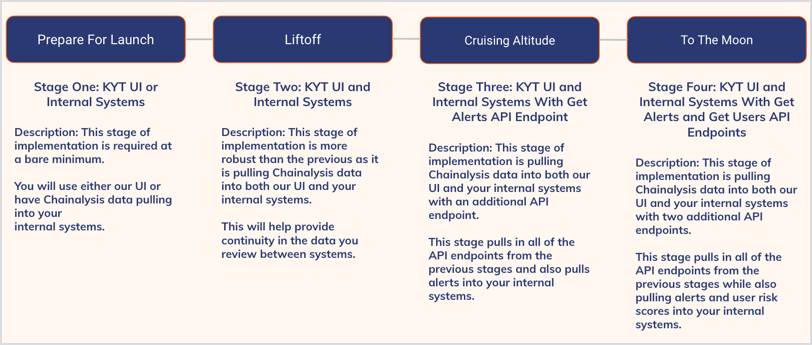

The following graphic serves as a preview and comparison for the various KYT implementations. The implementations are described in detail in the sections below, including benefits and drawbacks as well as required endpoints for each.

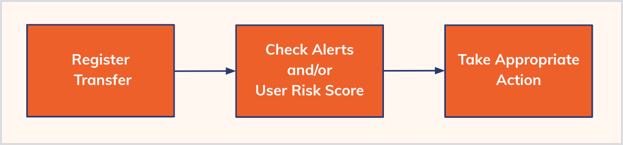

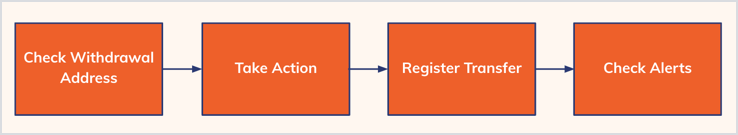

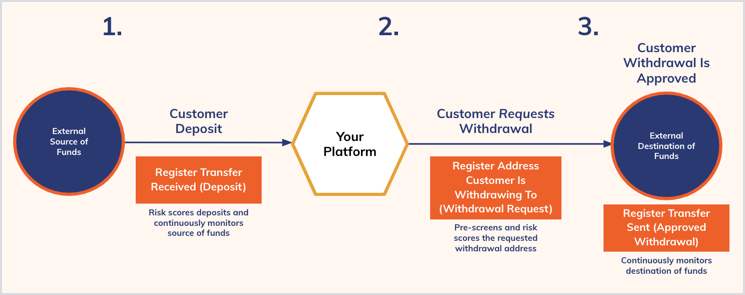

To help you visualize a compliance workflow using data from the KYT API, here is a basic KYT implementation.

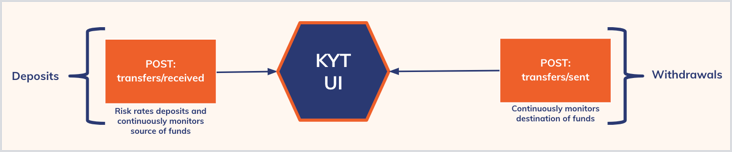

Prepare for launch 1

KYT UI only

This is the minimum implementation and keeps all data and functionality entirely within Chainalysis’s environment. It does not pull data into your internal systems.

You will receive the full functionality of the KYT UI, but you will not have the ability to automate actions on transfers within your internal systems based on the information from KYT.

This implementation requires registering /transfers/sent and /transfers/received. /depositaddresses is optional.

• Register a received transfer
  Registers a received transfer to a user and deposit address at your organization. The API response will contain a risk rating (high/low/unknown) of the counterparty that sent the transfer. If the cluster has been identified, the entity name will also be provided.

POST /users/{userId}/transfers/received

• Register a sent transfer
  Registers a completed outgoing transfer from a user at your organization to another entity. Usually this is called after the /withdrawaladdresses endpoint that pre-screens a counterparty before allowing the transfer to proceed.

POST /users/{userId}/transfers/sent

• Optional: Register deposit addresses
  In the future, KYT will be able to detect deposits (but not withdrawals) based on the deposit address. While this endpoint is not currently required for monitoring or integration, you can implement it now for use with upcoming functionality.

POST /users/{userId}/depositaddresses

Transactions must be associated with a User ID for user risk score calculation.

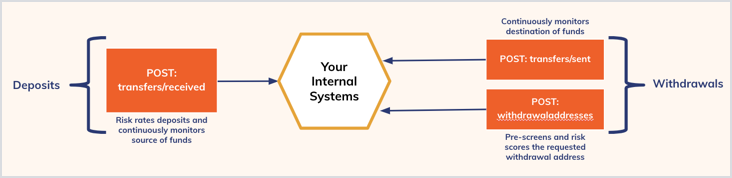

Prepare for launch 2

Internal systems only

While you can work entirely in the Chainalysis environment (see above), this implementation pulls Chainalysis’s data into your own system where you can incorporate KYT into your automated payments workflow.

Integrating Chainalysis’s data into your internal system helps you to get a more comprehensive picture of your risk activity and automate actions on transfers based on Chainalysis data. However, you will be missing out on functionality and convenience by not working within the KYT UI.

This implementation requires registering /transfers/sent and /transfers/received (described above), as well as /withdrawaladdresses.

• Pre-screen a withdrawal address
  Before allowing a transfer out of your organization, you can check the risk rating of the entity (cluster) associated with the address where the intended funds are going. After receiving a risk rating and information on the potential counterparty, you can determine whether to allow the withdrawal transfer to proceed.

For example, if you want to stop the withdrawal of funds to a sanction or terrorist financing entity, you would use this request.

POST /users/{userId}/withdrawaladdresses

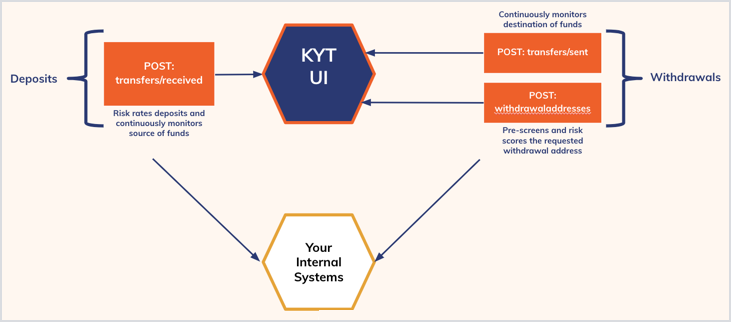

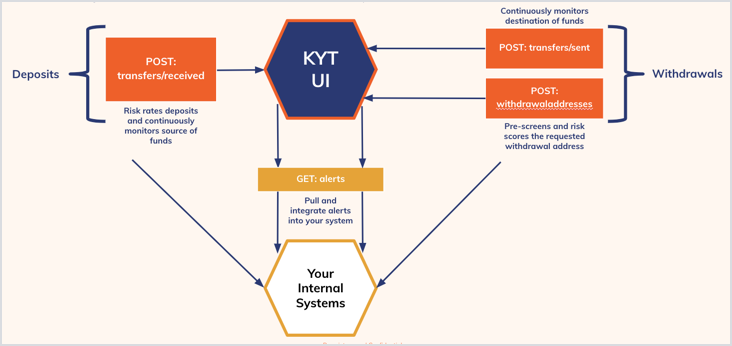

Lift off

KYT UI & Internal systems

This setup is more robust than the previous implementations, as it encompasses both the KYT UI and your internal systems. You will be able to take action on transfers within your system and also have the full functionality of the UI, helping to provide continuity in the data you review between systems.

However, it does not take advantage of all the KYT features, such as alerts.

This implementation requires registering /transfers/sent, /transfers/received, and /withdrawaladdresses (described above).

With this implementation you can:

• Create a URL link from your internal systems to the KYT UI.
• Set flags based on Chainalysis data. For example, a 'high risk' response from transfers/received puts risky deposits up for review by your compliance team.
• Pull Chainalysis data into your payment review system. For example, you can include a transfer's risk rate in your payments review queue.

Cruising altitude

KYT UI & Internal systems

This implementation pulls Chainalysis data into both the KYT UI and your internal systems with an additional API endpoint, /alerts.

Cruising Altitude brings the most powerful data that KYT offers - alerts - into your internal system. You can perform the actions mentioned above (setting flags, pulling the risk score into payments queues, etc) with the benefit that the data you are using is the most robust. This implementation can also help you match the alerts workflows that your compliance team is likely doing in the UI.

This implementation requires registering /transfers/sent, /transfers/received, /withdrawaladdresses (described above), as well as /alerts.

• Get alerts
  Retrieves the details of all of your alerts in KYT and pulls those alerts into your own system. Alerts allow you to identify risky transfers on your platform.


GET /alerts

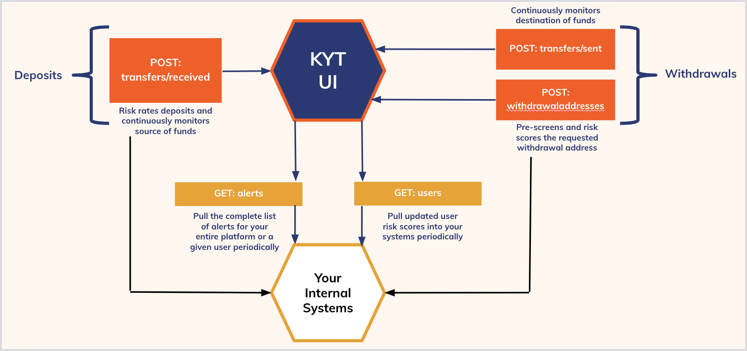

To the moon

KYT UI & Internal systems

This implementation pulls Chainalysis data into both the KYT UI and your internal systems. It builds on the implementations above with an additional endpoint, /users. GET /users provides you with a user risk score for each of your users.

Alerts and user risk score are two powerful analytic metrics that are provided by the KYT API for assessing your risk activity. User risk scores allow you to perform user-level automated review in your internal system on top of the transfer-level review from above.

This implementation requires registering /transfers/sent, /transfers/received, /withdrawaladdresses, /alerts (described above), as well as /users.

• Get users
  Retrieves details, including the user risk score (as LOW, MEDIUM, HIGH, or SEVERE), on all registered users in your system. You can use the user risk score to manually review or hold transfers made by high-risk users.

GET /users

Complianace workflows

Below are example compliance workflows using KYT’s most powerful risk assessment features to help you formulate policies and procedures based on the information provided by the KYT and Reactor UIs, and the KYT API.

The workflows below focus on three KYT features that help you prioritize risk activity: alerts, user risk score, and counterparty screen:

• Alerts in KYT are generated whenever a transfer involves a risky counterparty and/or crosses a value threshold. A single transfer can trigger multiple alerts.
• The user risk score helps you to identify high-risk users in your organization.
• Deposit and withdrawal requests registered with Chainalysis returns a counterparty risk rating as highRisk/unknown/lowRisk. If highRisk or lowRisk (i.e. if the counterparty is known), the Category (darknet market, exchange, etc.) and Name (Hydra Marketplace, Kraken.com) will also be returned.

We suggest using alerts as a notification and starting point for review and interacting with user risk profiles. The KYT Dashboard in the UI gives you a high-level overview of your risk for managerial and organizational reporting/monitoring, while alerts is where an analyst will spend most of their time.

Deposit workflow

This is a suggested workflow for funds that are received by a user at your organization. Note that in most cases, you cannot stop an incoming transfer from occurring. However, KYT helps you to detect the risk associated with the transfer and take appropriate compliance action. For example, if a user receives funds directly from a cluster categorized as child abuse material, you can decide how you want to react (e.g. freeze funds, investigate, and likely file a SAR).

1. Register the transfer
When funds arrive at a user address, POST the received transfer.

2. Check alerts and/or user risk score

You can check alerts:

• Via the UI: search for the transaction ID in the search bar at the top of the KYT UI. If an alert was raised on the transfer, it will appear in the transfer details panel.
• Via the API: by using the GET /alerts. Alert levels are returned as SEVERE, HIGH, MEDIUM, and LOW.

We suggest checking alerts first to assess risky transfer activity and then moving to review all alerts at the user level by clicking the unique URL for the user. You can also check the user’s risk score to see if the user is high risk.

You can check user risk score:

• Via the UI: search for the user’s ID in the search bar at the top of the KYT UI. The risk score is found on the user information page as Severe, High, Medium, or Low.
• Via the API: by using the riskScore property in GET /users/{userid}.

3. Take action

Take action on the received funds. For example, you can hold the transfer and submit it to be manually reviewed, immediately freeze the user’s funds, or deem the transfer non-risky.

Chainalysis continually monitors for risk on each registered transfer.

Withdrawal workflow

This is a suggested workflow for funds that are being sent by a user at your organization. Unlike deposits, you can stop a risky withdrawal from occurring if at the time of the withdrawal, the withdrawal address has been identified as risky. For example, if a user requests a withdrawal towards a sanctioned address, you can decide to block this request.

1. Check Withdrawal Address

The withdrawal prescreen is used in real-time to pre-screen for counterparty risk. When a user requests a withdrawal, register the withdrawal address by making a POST request to the /withdrawaladdresses endpoint. For known counterparties, a risk rating of high risk or low risk will be provided, as well as the counterparty’s name.

Note that it is common to withdraw to a previously unknown address, so the majority of addresses you check may have an unknown rating.

2. Take action

After performing the withdrawal address counterparty screen, take action on the pending transfer. You may choose to block a transfer that is high risk, or flag it for further review.

3. Register the transfer

Always be sure to register an approved withdrawal as a sent transfer upon completion so that your team can access it in the compliance dashboard and KYT can monitor the transfer. Note that KYT updates risk for transfers on an ongoing basis, but does not update withdrawal addresses. The latter will always return the rating when the address was first screened.

As with deposits, Chainalysis monitors sent transfers for you over time.

4. Check alerts

Look at the user information page in the UI for the user's associated withdrawal addresses and alerts. Alerts that have a sent direction mean that the withdrawal was approved.

Example compliance actions

Here are some examples of compliance actions taken by our customers when following the workflows above:

“If we notice a withdrawal request towards terrorism financing, we will show the user the withdrawal request is processing and call our Financial Intelligence Unit hotline to ask if they want us to block the transaction (and likely tip off the user) or allow it to occur (for ongoing monitoring).”

“If we detect a direct deposit from a darknet market, we will silently freeze the account. Typically we will file a SAR report, offboard the user, and allow the user to withdraw their funds via a fiat conversion to their bank account.”

“If we detect a pattern of risky (in)direct darknet market transactions, we will freeze the account. Typically we will file a SAR report, offboard the user, and allow the user to withdraw their cryptocurrency.”

“Transfers to mixing services are prohibited on our platform. If we see a withdrawal request to a mixer, we flag the transfer for review and ask the user to explain the purpose of the withdrawal.”

Internal systems

Note that instead of performing these checks manually, you can automate the process by building a response within your own internal systems. See the suggested implementations above for more information. The benefits of automating compliance include:

• Prevent successful money laundering.
• Proactively reduce risky activity from occurring.
• Nudge users toward correct behavior.
• More efficient and meaningful time usage of your compliance team.

transferReference syntax

UTXO based cryptocurrencies

UTXO based transfer example

Transfer is a sent transfer with hash 9022c2d59d1bed792b6449e956b2fe26b44b1043bbc1662d92ecd29526d7f34e and user output address 18SuMh4AFgTSQRvwFzdYGieHtgKDveHtc. The output address is in the 5th place in the transaction.

Select either output address method or output index method.

1. Output address method:

"asset": "BTC",
"transferReference":"2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:1H7aVb2RZiBmdbnzazQgVj2hWR3eEZPg6v"

2. Output index method:

"asset": "BTC",
"transferReference":"2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:4"

UTXO based cryptocurrencies, such as Bitcoin, must reference a transaction hash and a corresponding output address or transaction hash index.

Note that the output address is the destination address for funds within the transaction; i.e. where funds are being sent (for a sent transfer) or where funds are being received (in a received transfer). The output for received transactions will be an address you control.

When an output address is used to specify a transfer, the index of the first matching output is used regardless of value.

• Output address format: "transferReference":"transaction hash:output address"

• Output index format: "transferReference":"transaction hash:output index"

Account based cryptocurrencies

Account based transfer example

Basic ether transfer:

"asset": "ETH",
"transferReference":"0xe823c9b7895f9c47985c80e4611272f8194403e885c9cc603422cd609d738098:0x3d21a92285bf17cbdde5f77531b8b58ac400288a"

User is sending funds to a smart contract (note that the output address is the smart contract):

"asset": "USDC",
"transferReference":"0xeb8cff0b134a93da1c8e3ee263ff7a60ed836489a57e38a56c77bd0d0ab8995d:0x39aa39c021dfbae8fac545936693ac917d5e7563”

User is receiving funds from a smart contract (note that the output address belongs to the user):

"asset": "ETH",
"transferReference":"0xce5c4a31b2b6265f2373b5abf319d092ed8d659fa5ba41edf62d9ad61db570d4:0xE1DaC2E83a7Fc3B1C21a6F740eCd8e28cB965F14"

Account based cryptocurrencies, such as Ethereum or ERC-20 tokens, require a valid transaction hash and output address (see note above about output addresses).

• Format: "transferReference":"transaction hash:output address"

In the case of a smart contract, this format still holds. The output address can possibly be the smart contract itself if it is receiving funds from a user, or a customer if the smart contract is sending funds out.

Assets

You can send data for additional assets that are not yet fully supported with the POST /v2/users/{userId}/transfers/ endpoint. As soon as KYT supports the coin, the system will automatically backfill any data you've sent and you only have to upload this data once. A list of all assets you can send appears below.

V2 endpoints

User registration

These endpoints register a user's transfer or withdrawal attempt.

POST /v2/users/{userId}/transfers

POST /v2/users/{userId}/withdrawal-attempts

Register a transfer

ENDPOINT

POST /v2/users/{userId}/transfers

An example request to create a user and register a transfer:

curl -X POST 'https://test.chainalysis.com/api/kyt/v2/users/new_user_01/transfers' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --data {
    "asset": "TRX",
    "transferReference": "d559d5c64118fdeb16f0abe8b42ffcceae3c4dd16be1f762684f0b9d6995f6a6:TYbSzw3PqBWohc4DdyzFDJMd1hWeNN6FkB",
    "direction": "SENT",
    "transferTimestamp": "2021-01-06T13:49:34.013597",
    "assetAmount": "100.0",
    "outputAddress": "TYbSzw3PqBWohc4DdyzFDJMd1hWeNN6FkB",
    "inputAddresses": ["TYbSzw3PqBWohc4DdyzFDJMd1hWeNN6FkB"],
    "assetPrice": "50.0",
    "assetDenomination": "USD"
}

The above commands return JSON structured like this:

{
    "updatedAt": null,
    "asset": "TRX",
    "transferReference": "d559d5c64118fdeb16f0abe8b42ffcceae3c4dd16be1f762684f0b9d6995f6a6",
    "tx": null,
    "idx": null,
    "usdAmount": null,
    "assetAmount": null,
    "timestamp": null,
    "outputAddress": null,
    "externalId": "393905a7-bb96-394b-9e20-3645298c1079"
}

This endpoint registers a transfer. Once you make a request for a transfer, KYT stores it and begins processing.

For transfers that are valid and KYT can process, the transfer should process within 30 seconds.

This endpoint returns the below response:

• 202: Indicates KYT has accepted your transfer and will process your request.

Required parameters

Parameter	Type	Description
userId	String	The unique KYT user identification of the user.

Request body

Property	Type	Description
asset	String	The cryptocurrency asset in canonical form, i.e., BTC for Bitcoin.
transferReference	String	The transaction hash followed by a ":" and the output address or transaction index.
direction	String	Define whether the transfer is sent or received. This value is case insensitive.
transferTimestamp	ISO Datetime String	The timestamp of the transfer. Should correspond to the timestamp of the block that included the transaction.
assetAmount	Number	The amount of funds in a given transaction.
outputAddress	String	The output address of the transfer.
inputAddresses	Array	Optional: used only for assets under the Chainalysis Data Network. A list of input addresses of the transfer.
assetPrice	Number	The price of the asset.
assetDenomination	String	The denomination of the asset’s price. Available only as USD or USD stablecoin pair: USDT, DAI, USDC, etc.).

Response body

A successful request will return the following JSON response and properties:

Property name	Type	Description
updatedAt	ISO Datetime String	Indicates when the transfer was last processed. From your POST request, the value will be null.
asset	String	The asset you defined in the request body in canonical form, i.e., BTC for Bitcoin.
transferReference	String	The transfer reference you defined in the request body.
tx	String	The transaction hash of the transfer. From your POST request, the value will be null.
idx	Int	The transfer’s index. From your POST request, the value will be null.
usdAmount	Number	The amount of funds in a given transfer in USD. From your POST request, the value will be null.
assetAmount	Number	The asset amount in a given transfer. From your POST request, the value will be null.
timestamp	ISO Datetime String	The blockchain timestamp of the transfer. From your POST request, the value will be null.
outputAddress	String	The input address of the transfer. From your POST request, the value is null.
externalId	String	An identifier that references the created transfer.

Register a withdrawal attempt

ENDPOINT

POST /v2/users/{userId}/withdrawal-attempts

An example request to create a user and register a transfer:

curl -X POST 'https://test.chainalysis.com/api/kyt/v2/users/new_user_01/withdrawal-attempts' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --data {
    "asset": "BTC",
    "address": "1EM4e8eu2S2RQrbS8C6aYnunWpkAwQ8GtG",
    "attemptIdentifier": "attempt11",
    "assetAmount": 5.0,
    "assetPrice": 1000.0,
    "assetDenomination": "USD",
    "attemptTimestamp": "2020-12-09T17:25:40.008307"
}

The above commands return JSON structured like this:

{
    "asset": "BTC",
    "address": "1EM4e8eu2S2RQrbS8C6aYnunWpkAwQ8GtG",
    "attemptIdentifier": "attempt11",
    "assetAmount": 5.0,
    "usdAmount": null,
    "updatedAt": null,
    "externalId": "e27adb25-7344-3ae3-9c80-6b4879a85826"
}

This endpoint registers a withdrawal attempt. Once you make a request for a withdrawal attempt, KYT stores it and begins processing.

For a valid address, KYT will process the withdrawal attempt immediately after receiving the POST request.

This endpoint returns the below response:

• 202: Indicates KYT has accepted your withdrawal attempt and will process your request.

Required parameters

Parameter	Type	Description
userId	String	The unique KYT user identification of the user.

Request body

Property	Type	Description
asset	String	The cryptocurrency asset in canonical form, i.e., BTC for Bitcoin.
address	String	The cryptographic hash of a public and private key pair that holds value.
attemptIdentifier	String	A unique identifier you give for the withdrawal attempt.
assetAmount	Number	The amount of funds in a given transaction.
assetPrice	Number	The price of the asset.
assetDenomination	String	The denomination of the asset’s price. Available only as USD or USD stablecoin pair: USDT, DAI, USDC, etc.).
attemptTimestamp	ISO Datetime String	The time when the withdrawal attempt was made.

Response body

A successful request will return the following JSON response and properties:

Property name	Type	Description
asset	String	The asset you defined in the request body in canonical form, i.e., BTC for Bitcoin.
address	String	The address you defined in your POST request body.
attemptIdentifier	String	The identifier you created in your POST request body.
assetAmount	Number	The asset amount defined in your request body.
usdAmount	Number	The amount of funds in a given withdrawal attempt in USD. From your POST request, the value will be null.
externalId	String	An identifier that references the created withdrawal attempt.

Transfers

These endpoints return a transfer's summary, direct exposure, alerts, and any available network identifications.

GET /v2/transfers/{externalId}

GET /v2/transfers/{externalId}/exposure

GET /v2/transfers/{externalId}/alerts

GET /v2/transfers/{externalId}/network-identifications

Get a summary

ENDPOINT

GET /v2/transfers/{externalId}

An example request to retrieve a summary for a registered transfer:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/transfers/393905a7-bb96-394b-9e20-3645298c1079' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "updatedAt": "2021-03-22T23:16:00.022657",
    "asset": "TRX",
    "transferReference": "d559d5c64118fdeb16f0abe8b42ffcceae3c4dd16be1f762684f0b9d6995f6a6",
    "tx": "d559d5c64118fdeb16f0abe8b42ffcceae3c4dd16be1f762684f0b9d6995f6a6",
    "idx": null,
    "usdAmount": 5000.00,
    "assetAmount": 100.0,
    "timestamp": "2021-01-06T12:49:34.013+00:00",
    "outputAddress": "TYbSzw3PqBWohc4DdyzFDJMd1hWeNN6FkB",
    "externalId": "393905a7-bb96-394b-9e20-3645298c1079"
}

This endpoint returns the summary of the transfer you registered in your POST /transfers request.

Note: You must register your transfer using the Transfer Registration endpoint before you implement the below.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the created transfer.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
updatedAt	ISO Datetime String	When the transfer was last processed. If null, the transfer has not yet processed, or couldn’t process as it has not appeared in the blockchain.
asset	String	The asset of the transfer.
transferReference	String	The transferReference created from the POST request.
tx	String	The transaction hash of the transfer.
idx	Int	The transfer's index.
usdAmount	Number	The amount of funds in a given transfer in USD.
assetAmount	Number	The asset amount in a given transfer.
timestamp	ISO Datetime String	The blockchain timestamp of a given transfer.
externalId	String	An identifier that references the created transfer.

Get direct exposure

ENDPOINT

GET /v2/transfers/{externalId}/exposures

An example request to retrieve direct exposure from a registered BTC transfer:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/transfers/ae5e6b88-ad59-3688-ac2d-2b5a251e799e/exposures' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "direct": {
        "name": "BitPay.com",
        "category": "merchant services"
    }
}

This endpoint returns a transfer's cluster information on direct exposures.

You will receive a successful response after KYT has processed your transfer.

To ensure a successful response, call the Transfer Summary endpoint to view if the updatedAt property in your response body is populated before examining your transfer's direct exposure.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the created transfer.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
direct	Object	Contains information of a given cluster's direct exposure.
direct.name	String	The name of a given cluster's counterparty as identified by Chainalysis.
direct.category	String	The category of a given cluster's counterparty as identified by Chainalysis.

Get alerts

ENDPOINT

GET /v2/transfers/{externalId}/alerts

An example request to retrieve information on alerts from a registered transfer:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/transfers/393905a7-bb96-394b-9e20-3645298c1079/alerts' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "alerts": [
        {
            "alertLevel": "HIGH",
            "category": "custom address",
            "service": "Play Royal",
            "externalId": "906ff226-8b64-11eb-8e52-7b35a3dc1742",
            "alertAmount": 5000.00,
            "exposureType": "DIRECT"
        }
    ]
}

This endpoint returns a transfer's alerts, if available.

You will receive a successful response after KYT has processed your transfer.

To ensure a successful response, call the Transfer Summary endpoint to view if the updatedAt property in your response body is populated before examining your transfer's alerts.

Note: Alerts for transfers generate according to your organization's alert rules. Learn more about how to define these rules in the KYT UI here.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the created transfer.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
alerts	Array	Contains alert information for a given transfer.
alertLevel	String	Defines the alert's risk as SEVERE, HIGH, MEDIUM, or LOW.
category	String	The category of the service as identified by Chainalysis.
service	String	The name of the service as defined by Chainalysis.
externalId	UUID String	An UUID to uniquely identify the alert.
alertAmount	Number	The USD amount that caused the alert to trigger.
exposureType	String	Defines the exposure direction as DIRECT or INDIRECT.

Get network identifications

ENDPOINT

GET /v2/transfers/{externalId}/network-identifications

An example request to retrieve the count of network identifications from a registered transfer:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/transfers/94d72448-6963-3536-9996-1637f6756f0b/network-identifications' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "count": 1,
    "networkIdentificationOrgs": [
        {
            "name": "Yev Test"
        }
    ]
}

This endpoint returns information on your transfer's network identifications for transfers on assets KYT does not fully support.

For transfers on assets KYT fully supports, you will receive a 400 response. View the Chainalysis Data Network assets for assets you can use with this endpoint.

You will receive a successful response after KYT has processed your transfer.

To ensure a successful response, call the Transfer Summary endpoint to view if the updatedAt property in your response body is populated before examining your transfer's alerts.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the created transfer.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
count	Int	The number of other organizations in the Chainalysis Data Network that registered the transfer in the opposing direction. For example, if you registered the transfer in the SENT direction, you will receive the count of registered transfers in the RECEIVED direction.
networkIdentificationOrg	Array	Contains the names of the organizations that registered the transfer under the Chainalysis Data Network.
name	String	The name of the organization that registered the transfer under the Chainalysis Data Network.

Withdrawal attempts

These endpoints return a transfer's summary, direct exposure, alerts, and any available network identifications.

GET /v2/withdrawal-attempts/{externalId}

GET /v2/withdrawal-attempts/{externalId}/exposure

GET /v2/withdrawal-attempts/{externalId}/alerts

GET /v2/withdrawal-attempts/{externalId}/network-identifications

Get a summary

ENDPOINT

GET /v2/withdrawal-attempts/{externalId}

An example request to retrieve a summary for a withdrawal attempt:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/withdrawal-attempts/e27adb25-7344-3ae3-9c80-6b4879a85826' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "asset": "BTC",
    "address": "1EM4e8eu2S2RQrbS8C6aYnunWpkAwQ8GtG",
    "attemptIdentifier": "attempt11",
    "assetAmount": 5.0,
    "usdAmount": 5000.00,
    "updatedAt": "2021-03-23T15:21:10.835+00:00",
    "externalId": "e27adb25-7344-3ae3-9c80-6b4879a85826"
}

This endpoint returns the summary of the withdrawal attempt you registered in your POST /withdrawal-attempts request.

Note: You must register your withdrawal attempt using the Withdrawal Attempt Registration endpoint before you implement the below.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references your received transfer when KYT registered your withdrawal attempt.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
asset	String	The asset of the withdrawal attempt.
address	String	The address of the withdrawal attempt.
attemptIdentifier	String	The identifier you created from the POST request.
assetAmount	Number	The asset amount in the withdrawal attempt.
usdAmount	Number	The amount of funds in the withdrawal attempt in USD.
updatedAt	String	When the withdrawal attempt was last processed. If null, the withdrawal attempt has not yet processed.
externalId	String	An identifier to reference the withdrawal attempt.

Get direct exposure

ENDPOINT

GET /v2/withdrawal-attempts/{externalId}/exposures

An example request to retrieve direct exposure information from a registered BTC withdrawal attempt:

curl -X GET 'https://api.chainalysis.com/api/kyt/v2/withdrawal-attempts/e27adb25-7344-3ae3-9c80-6b4879a85826/exposures' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "direct": {
        "name": null,
        "category": null
    }
}

This endpoint returns a withdrawal attempt’s cluster information on direct exposures.

You will receive a successful response after KYT has processed your withdrawal attempt.

To ensure a successful response, call the Withdrawal Attempt Summary endpoint to view if the updatedAt property in your response body is populated before examining your withdrawal attempt's direct exposure.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the received transfer when KYT registered the withdrawal attempt.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
direct	Object	Contains information of a given cluster's direct exposure.
direct.name	String	The name of a given cluster's counterparty as identified by Chainalysis. If no name, the value is null.
direct.category	String	The category of a given cluster's counterparty as identified by Chainalysis. If no category, the value is null.

Get alerts

ENDPOINT

GET /v2/withdrawal-attempts/{externalId}/alerts

An example request to retrieve alert information from a registered withdrawal attempt:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/withdrawal-attempts/eb67cbdc-8bea-11eb-83d5-378cec3052c2/alerts' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "alerts": [
        {
            "alertAmount": 5000.0,
            "alertLevel": "HIGH",
            "category": "custom address",
            "exposureType": "DIRECT",
            "externalId": "eb67cbdc-8bea-11eb-83d5-378cec3052c2",
            "service": "Play Royal"
        }
    ]
}

This endpoint returns a withdrawal attempt's alerts, if available.

You will receive a successful response after KYT has processed your withdrawal attempt.

To ensure a successful response, call the Withdrawal Attempt Summary endpoint to view if the updatedAt property in your response body is populated before examining your withdrawal attempt's alerts.

Note: Alerts for withdrawal attempts generate according to your organization's alert rules. Learn more about how to define these rules in the KYT UI here.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the registered withdrawal attempt.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
alerts	Array	Contains alert information for a given transfer.
alertAmount	Number	The USD amount that caused the alert to trigger.
alertLevel	String	Defines the alert's risk as SEVERE, HIGH, MEDIUM, or LOW.
category	String	The category of the service as identified by Chainalysis.
exposureType	String	Defines the exposure direction as DIRECT or INDIRECT.
externalId	UUID String	An UUID to uniquely identify the alert.
service	String	The name of the service as defined by Chainalysis.

Get high risk addresses

ENDPOINT

GET /v2/withdrawal-attempts/{externalId}/high-risk-addresses

An example request to retrieve custom address information from a registered withdrawal attempt:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/withdrawal-attempts//high-risk-addresses' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like:

{
    "chainalysisIdentifications": [],
    "customAddresses": [
        {
            "addressName": "Play Royal",
            "categoryName": "gambling",
            "description": "This address belongs to playroyal.com"
        }
    ]
}

Example response body for Chainalysis Identifications from a registered withdrawal attempt:

{
    "chainalysisIdentifications": [
        {
            "addressName": "SANCTIONS: OFAC SDN: Xiaobing Yan",
            "categoryName": "sanctions",
            "description": "This specific address 12QtD5BFwRsdNsAZY76UVE1xyCGNTojH9h within the cluster has been identified as belonging to an individual on OFAC's SDN list. YAN, Xiaobing (Chinese Traditional: 顏曉兵; Chinese Simplified: 颜晓兵) (a.k.a. \"YAN, Steven\"; a.k.a. \"ZHOU, William\"), Wuhan, Hubei, China (Chinese Simplified: 武汉市, 湖北省, China; Chinese Traditional: 武漢市, 湖北省, China); DOB 25 Mar 1977; POB Wuhan City, Hubei, China; citizen China; Gender Male; Chinese Commercial Code 7346 2556 0365; Citizen's Card Number 421002197703250019 (China) (individual) [SDNTK]."
        }
    ],
    "customAddresses": []
}

This endpoint returns high risk information, i.e., a user’s upload of custom addresses or Chainalysis identified addresses, for the withdrawal attempt.

You will receive a successful response after KYT has processed your withdrawal attempt.

To ensure a successful response, call the Withdrawal Attempt Summary endpoint to view if the updatedAt property in your response body is populated before examining your withdrawal attempt's high risk address information.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the registered withdrawal attempt.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
customAddresses	Array	Contains custom address information that matches the addresses in the withdrawal attempt.
chainalysisIdentifications	Array	A Chainalysis Identified Address, representing an address-level identification that is part of a larger cluster. null if not applicable.
addressName	String	For customAddresses: The name of the address the custom address was registered under. For chainalysisIdentifications: The name designated to the Chainalysis Identification.
categoryName	String	For customAddresses: The category of the custom address as identified by Chainalysis. For chainalysisIdentifications: The category of the Chainalysis Identification.
description	String	For customAddresses: The description of the custom address. For chainalysisIdentifications: The OSINT description of the Chainalysis Identification.

Get network identifications

ENDPOINT

GET /v2/withdrawal-attempts/{externalId}/network-identifications

An example request to retrieve the count of network identifications from a registered withdrawal attempt:

curl -X GET 'https://test.chainalysis.com/api/kyt/v2/withdrawal-attempts/159cc56a-ae87-3aab-a2fc-2d4f9f42885f/network-identifications' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above commands return JSON structured like this:

{
    "count": 1,
    "networkIdentificationOrgs": [
        {
            "name": "Yev Test"
        }
    ]
}

This endpoint returns information on network identifications for withdrawal attempts on assets KYT does not fully support.

For assets KYT supports, you will receive a 400 response. View the Chainalysis Data Network assets for assets you can use with this endpoint.

You will receive a successful response after KYT has processed your withdrawal attempt.

To ensure a successful response, call the Withdrawal Attempt Summary endpoint to view if the updatedAt property in your response body is populated before examining your withdrawal attempt's network identifications.

Required parameters

Parameter	Type	Description
externalId	String	An identifier that references the registered withdrawal attempt.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given externalId:

Property	Type	Description
count	Int	The number of other organizations in the Chainalysis Data Network that registered the withdrawal attempt.
networkIdentificationOrgs	Array	Contains the names of the organizations that registered the withdrawal attempt under the Chainalysis Data Network.
name	String	The name of the organization that registered the withdrawal attempt under the Chainalysis Data Network.

V1 endpoints

Received transfers

These endpoints either post or get a received transfer.

POST /v1/users/{userId}/transfers/received

GET /v1/users/{userId}/transfers/received

With them, you can:

• Register incoming transfers (deposits) to a user at your organization
• Screen deposits for illicit (high risk) counterparties, and allow for programmatic alerts and action
• Retrieve all received transfers used to calculate and individual users risk score

A list of assets that are currently supported by KYT appears below.

Note that you can send data for more assets in addition to this list through the transfers/received endpoint. As soon as KYT fully supports the coin, the system will automatically backfill any data you've sent. Therefore, you only have to upload this data once. See a list of all the assets you can send to KYT below.

Register a received transfer

ENDPOINT

POST /v1/users/{userId}/transfers/received

An example BTC received transfer for user 005 using output address in the transferReference.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/005/transfers/received' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data '[{"asset": "BTC", "transferReference": "2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:1H7aVb2RZiBmdbnzazQgVj2hWR3eEZPg6v"}]'

An example BTC received transfer for user 005 using output index in the transferReference.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/005/transfers/received' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data '[{"asset": "BTC", "transferReference": "2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:0"}]'

The above commands return JSON structured like this:

[
  {
    "transferReference": "2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:1H7aVb2RZiBmdbnzazQgVj2hWR3eEZPg6v",
    "asset": "BTC",
    "cluster": {
      "name": "Coinbase.com",
      "category": "exchange"
    },
    "rating": "lowRisk"
  }
]

Required parameters

Property	Type	Description
userId	String	The userId to associate with the received transfer.
asset	String	The asset used during the transfer.
transferReference	String	The transaction output to associate with the userId. Read more about the transfer reference here.

Optional parameters

Property	Type	Description
bulkImport	String	Either true or false. If set to true, no real-time response is returned and the request executes faster. We suggest using this parameter if you do not require the real-time response. There is a limit of 100 transfers when bulkImport is false and 1000 transfers when bulkImport is true.

If using bulkImport, it should be passed in as a parameter in the URL, not sent in the request body:

https://test.chainalysis.com/api/kyt/v1/users/005/transfers/received?bulkImport=true

If you are sending data for additional assets that are not currently supported by KYT (see list of supported assets), you can use the following optional parameters.

Property	Type	Description
transferTimestamp	ISO-8601 Date String	The timestamp of the transfer.
assetAmount	Number	The amount of the asset transferred.

Request body

Define the asset used in the transfer.

"asset": "BTC"

The transaction hash followed by a ":" and the output address or output index.

"transferReference": "2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:1H7aVb2RZiBmdbnzazQgVj2hWR3eEZPg6v"

Note that the output address is the destination address for funds within the transaction; i.e. where funds are being sent (for a sent transfer) or where funds are being received (in a received transfer). The output for received transactions will be an address you control.

Response

A successful request will return the following JSON response and properties for a given userId, asset, and transferReference.

Property name	Type	Description
transferReference	String	The Transaction hash:index combination associated to the Transaction.
asset	String	The asset associated with the Transaction associated with the user.
cluster	Object	The identification of a group of addresses estimated by Chainalysis to be controlled by a single entity.
cluster.name	String	The name of a named Cluster.
cluster.category	String	The category the named Cluster belongs to, ie. Exchange.
rating	String	The risk rating of the Transfer Received as highRisk, lowRisk, or unknown.

Get a received transfer

ENDPOINT

GET /v1/users/{userId}/transfers/received

An example request retrieving all received transfers for user BTC_01

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/transfers/received' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "limit": 100,
  "offset": 0,
  "total": 1,
  "data": [
    {
      "asset": "BTC",
      "transferReference": "2d9bfc3a47c2c9cfd0170198782979ed327442e5ed1c8a752bced24d490347d4:1H7aVb2RZiBmdbnzazQgVj2hWR3eEZPg6v",
      "amount": "4",
      "amountUSD": "561.64",
      "rating": "lowRisk",
      "cluster": {
        "name": "Coinbase.com",
        "category": "exchange"
    }
  ]
}

The Response Body will be a list with the same length as the number of transfers in the request.

Required parameters

Property	Type	Description
userId	String	The userId to list registered Received Transfers for.

Optional pagination parameters

Property	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given userId.

Property name	Type	Description
asset	String	The asset associated with the Transaction associated with the user.
transferReference	String	The Transaction hash:index combination associated to the Transaction.
amount	Number	The amount of the asset transferred in the transaction.
amountUSD	Number	The amount of the asset transferred in the transaction converted to US Dollars at the time of the transaction.
rating	String	The risk rating of the Transfer Received as highRisk, lowRisk, or unknown.
cluster	Object	The identification of a group of addresses estimated by Chainalysis to be controlled by a single entity.
cluster.name	String	The name of a named Cluster.
cluster.category	String	The category the named Cluster belongs to, ie. Exchange.

Sent transfers

These endpoints either post or get a sent transfer.

POST /v1/users/{userId}/transfers/sent

GET /v1/users/{userId}/transfers/sent

With them, you can:

• Register outgoing transfers (withdrawals) from users at your organization
• Call directly after the WithdrawalAddress endpoint for transfers executed after pre-screening
• Retrieve all sent transfers used in the calculation for a users risk score

A list of assets that are currently supported by KYT appears below.

Note that you can send data for more assets in addition to this list through the transfers/sent endpoint. As soon as KYT fully supports the coin, the system will automatically backfill any data you've sent. Therefore, you only have to upload this data once. See a list of all the assets you can send to KYT below.

Register a sent transfer

ENDPOINT

POST /v1/users/{userId}/transfers/sent

An example BTC sent transfer for the user 005 using output address in the transferReference.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/005/transfers/sent' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data
  '[{
    "asset": "BTC",
    "transferReference": "7c2238d4de91472061d66f918bda68541f33bd84ce994bcf191cd1315fa41118:16HgQB937BRDk3PyS9nSUuHE2P6CbjNuAe"
  }]'

An example BTC sent transfer for the user 005 using output index in the transferReference.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/005/transfers/sent' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data
  '[{
    "asset": "BTC",
    "transferReference": "7c2238d4de91472061d66f918bda68541f33bd84ce994bcf191cd1315fa41118:0"
  }]'

The above commands return an empty JSON response.

Required parameters

Property	Type	Description
userId	String	The userId to associate with the sent transfer.
asset	String	The asset used during the sent transfer.
transferReference	String	The transaction output to be associated with the userId. Read more about the transfer reference here.

Optional parameters

If you are sending data for additional assets that are not currently supported by KYT (see list of supported assets), you can use the following optional parameters.

Property	Type	Description
transferTimestamp	ISO-8601 Date String	The timestamp of the transfer.
assetAmount	Number	The amount of the asset transferred.

Request body

Define the asset used in the transfer.

"asset": "BTC"

The transaction hash followed by a ":" and the output address or transaction index.

"transferReference": "7c2238d4de91472061d66f918bda68541f33bd84ce994bcf191cd1315fa41118:0"

Response

The response will be an empty zero byte response, indicated by a response header Content-Length: 0.

Get a sent transfer

ENDPOINT

GET /v1/users/{userId}/transfers/sent

An example request for retrieving all sent transfers for user BTC_01.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/transfers/sent' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "limit": 100,
  "offset": 0,
  "total": 1,
  "data": [
    {
      "asset": "BTC",
      "transferReference": "7c2238d4de91472061d66f918bda68541f33bd84ce994bcf191cd1315fa41118:0",
      "amount": "3",
      "amountUSD": "35001.39",
      "cluster": {
        "name": "Exmo.com",
        "category": "exchange"
    }
  ]
}

The Response Body will be a list with the same length as the number of transfers in the request.

Required parameters

Property	Type	Description
userId	String	The userId associated with the sent transfers you want to retrieve.

Optional pagination parameters

Property	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following properties in JSON format for a given userId.

Property	Type	Description
asset	String	The asset associated with the Transaction associated with the user.
transferReference	String	The Transaction hash:index combination associated to the Transaction.
amount	Number	The amount of the asset transferred in the Transaction.
amountUSD	Number	The amount of the asset transferred in the Transaction converted to US Dollars at the time of the transaction.
cluster	Object	The identification of a group of addresses estimated by Chainalysis to be controlled by a single entity.
cluster.name	String	The name of a named Cluster.
cluster.category	String	The category the named Cluster belongs to, ie. Exchange.

Withdrawal pre-screening

These endpoints allow you to post, get, or delete a withdrawal address.

POST /v1/users/{userId}/withdrawaladdresses

GET /v1/users/{userId}/withdrawaladdresses

DELETE /v1/users/{userId}/withdrawaladdresses

With them, you can:

• Pre-screen in real-time for counterparty risk within your withdrawal workflow

• Receive a risk raiting for known counterparties, then
• Determine to either proceed with a transfers/sent API call to register the transaction for a given users profile

Note that KYT updates risk for transfers on an ongoing basis, but does not update withdrawal addresses. The withdrawaladdresses endpoint returns the cluster information that was available when the API was called. For ongoing monitoring, you should register the transfer with the transfers/sent endpoint.

The list of assets that KYT supports appears below. Note that this endpoint only accepts the assets from this list. To send data on additional assets (including assets that KYT may support in the future), use the transfers/sent and transfers/received endpoints.

Register withdrawal addresses

ENDPOINT

POST /v1/users/{userId}/withdrawaladdresses

This endpoint posts a withdrawal addresses and risk ratings for a single User ID.

An example request for registering a Bitcoin Withdrawal Address of 1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk for user BTC_01 would look like the following.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/withdrawaladdresses' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data '[{"asset": "BTC", "address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk"}]'

The above command returns JSON structured like this:

{
  "asset": "BTC",
  "address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk",
  "cluster": {
    "name": "Coinbase",
    "category": "Exchange"
  },
  "rating": "lowRisk",
  "customAddress": null,
  "chainalysisIdentification": null
}

Example response body for an unknown recipient

{
  "asset": "BTC",
  "address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk",
  "cluster": null,
  "rating": "unknown",
  "customAddress": null,
  "chainalysisIdentification": null
}

Example response body for a Custom Address

{
   "asset": "BTC",
   "address": "1LRtBLSGLnhnhXiWenZWYkWZJnxZo282Ug",
   "cluster": null,
   "rating": "highRisk",
   "customAddress": {
       "addressName": "XYZ Darknet Market",
       "description": "Example description of darknet market",
       "categoryName": "darknet market"
   },
   "chainalysisIdentification": null
}

Example response body for a Chainalysis Identification

{
  "asset": "LTC",
  "address": "LaizKtS5DUhPuP1nTQcc83MS7HwK6vk85z",
  "cluster": {
      "name": "Gatecoin.com",
      "category": "exchange"
  },
  "rating": "highRisk",
  "customAddress": null,
  "chainalysisIdentification": {
      "addressName": "OFAC SDN Guanghua Zheng",
      "description": "ZHENG, Guanghua (Chinese Traditional: 鄭广華; Chinese Simplified: 郑广华); DOB 04 Nov 1955; POB Shanghai, China; nationality China; citizen China; Email Address zhenguanghua1955@outlook.com; alt. Email Address zhenguanghua1955@gmail.com; Gender Male; Passport E51809923 (China) issued 25 May 2015 expires 24 May 2025; Identification Number 310108195511041616 (China); Chinese Commercial Code 6774 1639 5478 (individual) [SDNTK]. https://www.treasury.gov/resource-center/sanctions/OFAC-Enforcement/Pages/20190821.aspx",
      "categoryName": "sanctions"
  }
}

Required parameters

Parameter name	Type	Description
userId	String	The userId to associate with the withdrawal address.
asset	String	The asset type being pre-screened.
address	String	The address used to determine counterparty risk.

Optional parameters

Parameter name	Type	Description
bulkImport	String	Either true or false. If set to true, no real-time response is returned and the request executes faster. We suggest using this parameter if you do not require the real-time response. There is a limit of 100 items when bulkImport is false and 1000 items when bulkImport is true.

If using bulkImport, it should be passed in as a parameter in the URL, not sent in the request body:

https://test.chainalysis.com/api/kyt/v1/users/BTC_01/withdrawaladdresses?bulkImport=true

Request body

Specify the asset of the address to be screened.

"asset": "BTC"

Include the address to be screened.

"address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk"

Response body

A successful request will return the following JSON response for known recipients.

Property name	Type	Description
asset	String	The asset associated with the withdrawal address.
address	String	The asset withdrawal address.
cluster	Object	The identification of a group of addresses estimated by Chainalysis to be controlled by a single entity. null if the cluster has not yet been identified.
cluster.name	String	The name of the named cluster.
cluster.category	String	The category of the named cluster.
rating	String	The risk rating of the known recipient address.
customAddress	Object	An address you've uploaded through the KYT UI that allows you to receive alerts on activity. null if not applicable.
customAddress.addressName	String	The name you've given to the Custom Address in the CSV file.
customAddress.description	String	The description you've provided for the Custom Address in the CSV file.
customAddress.categoryName	String	The category name you provided for the Custom Address in the CSV file.
chainalysisIdentification	Object	A Chainalysis Identified Address, representing an address-level identification that is part of a larger cluster. null if not applicable.
chainalysisIdentification.addressName	String	The name designated to the Chainalysis Identification.
chainalysisIdentification.description	String	The OSINT from the Chainalysis Identification.
chainalysisIdentification.categoryName	String	The category of the Chainalysis Identification.

Note that the responses are not mutually exclusive. For example, you can have a known or unknown recipient and a Custom Address and/or a Chainalysis Identification.

Retrieve withdrawal addresses

ENPOINT

GET /v1/users/{userId}/withdrawaladdresses

This endpoint retrieves all withdrawal addresses and risk ratings for a single User ID.

An example request for listing all Withdrawal Addresses for user BTC_01.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/withdrawaladdresses' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "total": 100,
  "limit": 25,
  "offset": 3,
  "data": [
    {
      "asset": "BTC",
      "address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk",
      "cluster": {
        "name": "Coinbase",
        "category": "Exchange"
      },
      "customAddress": null,
      "chainalysisIdentification": null,
      "rating": "lowRisk",
    },
    ...
  ]
}

Example response body for a Custom Address

{
    "limit": 100,
    "offset": 0,
    "total": 1,
    "data": [
        {
            "asset": "BTC",
            "address": "12gzta6sTonaMy5mozWhStMMSet1FxFA7L",
            "cluster": null,
            "customAddress": {
                "addressName": "Darknet",
                "description": "User is operating store on darknet market",
                "categoryName": "darknet market"
            },
            "chainalysisIdentification": null,
            "rating": "highRisk"
        }
    ]
}

Example response body for a Chainalysis Identification

{
    "limit": 100,
    "offset": 0,
    "total": 1,
    "data": [
        {
            "asset": "LTC",
            "address": "LaizKtS5DUhPuP1nTQcc83MS7HwK6vk85z",
            "cluster": {
                "name": "Gatecoin.com",
                "category": "exchange"
            },
            "customAddress": null,
            "chainalysisIdentification": {
                "addressName": "OFAC SDN Guanghua Zheng",
                "description": "ZHENG, Guanghua (Chinese Traditional: 鄭广華; Chinese Simplified: 郑广华); DOB 04 Nov 1955; POB Shanghai, China; nationality China; citizen China; Email Address zhenguanghua1955@outlook.com; alt. Email Address zhenguanghua1955@gmail.com; Gender Male; Passport E51809923 (China) issued 25 May 2015 expires 24 May 2025; Identification Number 310108195511041616 (China); Chinese Commercial Code 6774 1639 5478 (individual) [SDNTK]. https://www.treasury.gov/resource-center/sanctions/OFAC-Enforcement/Pages/20190821.aspx",
                "categoryName": "sanctions"
            },
            "rating": "highRisk"
        }
    ]
}

Required parameters

Parameter name	Type	Description
userId	String	The userId to retrieve withdraw addresses for.

Optional pagination parameters

Parameter name	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response for a known recipient.

Property name	Type	Description
asset	String	The asset associated with the withdraw address.
address	String	The asset withdraw address.
cluster	Object	The identification of a group of addresses estimated by Chainalysis to be controlled by a single entity. null if the cluster has not yet been identified.
cluster.name	String	The name of the named cluster.
cluster.category	String	The category of the named cluster, i.e., Exchange.
customAddress	Object	An address you've uploaded through the KYT UI that allows you to receive alerts on activity. null if not applicable.
customAddress.addressName	String	The name you've given to the Custom Address in the CSV file.
customAddress.description	String	The description you've provided for the Custom Address in the CSV file.
customAddress.categoryName	String	The category name you provided for the Custom Address in the CSV file.
chainalysisIdentification	Object	A Chainalysis Identified Address, representing an address-level identification that is part of a larger cluster. null if not applicable.
chainalysisIdentification.addressName	String	The name designated to the Chainalysis Identification.
chainalysisIdentification.description	String	The OSINT from the Chainalysis Identification.
chainalysisIdentification.categoryName	String	The category of the Chainalysis Identification.
rating	String	The risk rating of the known recipient address.
total	Int	The total number of results in the data set.
limit	Int	The limit of the data set.
offset	Int	The offset of the data set.

Delete withdrawal addresses

ENPOINT

DELETE /v1/users/{userId}/withdrawaladdresses

This endpoint deletes a specific Withdrawal Address for a given user.

An example request for deleting a Bitcoin Withdrawal Address of 1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk for user BTC_01.

curl -X DELETE 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/withdrawaladdresses/BTC/1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns an empty JSON response body.

Required parameters

Parameter name	Type	Description
userId	String	The userId to retrieve withdraw addresses for.
asset	String	The asset type associated with the withdraw address.
address	String	The asset withdraw address associated with the userId requested.

Response body

The call has an empty Response Body. ie. a zero byte response, indicated by a response header Content-Length: 0.

Deposit addresses

These endpoints allow you to register, retrieve, or delete a cryptocurrency address for a given user that receives fund into your organization.

POST /v1/users/{userId}/depositaddresses

GET /v1/users/{userId}/depositaddresses

DELETE /v1/users/{userId}/depositaddresses

These endpoints are not currently required for integration. For ongoing monitoring, you should register transfers with the transfers/sent and transfers/received endpoints.

Note: In the future, KYT will be able to detect deposits (but not withdrawals) based on the deposit address. While this endpoint is not currently required for monitoring or integration, you can implement it now for use with this upcoming functionality.

The list of assets that KYT supports appears below. Note that this endpoint only accepts the assets from this list. To send data on additional assets (including assets that KYT may support in the future), use the transfers/sent and transfers/received endpoints.

Register deposit addresses

ENDPOINT

POST /v1/users/{userId}/depositaddresses

An example request for registering a Bitcoin deposit address of 1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk for user BTC_01 would look like the following.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/depositaddresses' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --data '[{"asset": "BTC", "address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk"}]'

The above command returns an empty JSON response.

Required parameters

Parameter name	Type	Description
userId	String	The userId to associate with the deposit address.
asset	String	The asset to associate with the deposit address.
address	String	The deposit address to be associated with the userId and asset.

Optional parameters

This call has no optional parameters.

Request body

Specify the asset of the deposit address.

"asset": "BTC"

Include the address.

"address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk"

Response body

The response will be empty, ie. a zero byte response, indicated by a response header Content-Length: 0.

Retrieve deposit addresses

ENDPOINT

GET /v1/users/{userId}/depositaddresses

Retrieves all deposit addresses for a single User ID.

An example request for listing all deposit addresses for user BTC_01 would look like the following.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/depositaddresses' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "total": 1000,
  "limit": 0,
  "offset": 0,
  "data": [
    {
      "asset": "BTC",
      "address": "1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk"
    },
    ...
  ]
}

Required parameters

Parameter name	Type	Description
userId	String	The userId from which you wish to retrieve the deposit addresses.

Optional parameters

Parameter name	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

Request body

This call has no accompanying Request Body.

Response body

A successful request will return the following JSON response and properties for a given userId.

Property name	Type	Description
asset	String	The asset associated with the deposit address for the user.
address	String	The deposit address associated with the user.
total	Int	The total number of results in the data set.
limit	Int	The limit of the data set.
offset	Int	The offset of the data set.

Delete deposit addresses

ENDPOINT

DELETE /v1/users/{userId}/depositaddresses

An example request for deleting an associated Bitcoin deposit address of 1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk for user BTC_01 using curl would look like the following.

curl -X DELETE 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01/depositaddresses/BTC/1MCPcGbnrv4Uv9HcrjoQwzJaEFGrwzE6Pk' \
--header 'Token: <API_KEY>' \
--header 'Accept: application/json'

Deletes the associated deposit address for a single User ID.

Required parameters

Parameter name	Type	Description
userId	String	The userId associated with the deposit address.
asset	String	The asset associated with the deposit address.
address	String	The deposit address to be deleted.

Optional parameters

This call has no optional parameters.

Request body

This call has no accompanying Request Body.

Response body

The response will be empty, ie. a zero byte response, indicated by a response header Content-Length: 0.

Users

These endpoints allow you to retrieve either all your users or a single user, as well as rename a user.

GET /v1/users/

GET /v1/users/{userId}

POST /v1/users/rename

Users are aggregations of transfers, tagged by User ID. Users in KYT should map 1:1 to users on your platform. Analyzing risk at a user level allows you to compare all the historical transfers made by a user to their current transfer.

The Users endpoint generates risk score reports for all users submitted to Chainalysis KYT. The endpoint supports both a summary format of all users and detailed reporting on specific users when passed a corresponding user ID. You are also able to rename User IDs via the API.

In determining User IDs, it is important to keep the following information in mind:

• You should use the same User ID across all supported asset types. This allows KYT to assess the user risk based on his or her combined activity.
• We encourage you to use an ID which relates to your internal system, as it helps your compliance team quickly find and monitor the users.
• Important: the User ID should not contain personally identifiable information.

Get all users

ENDPOINT

GET /v1/users/

This endpoint retrieves and lists all User IDs in your KYT system.

An example request for listing all User IDs in the KYT system using curl would look like the following.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/users/' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "total": 1000,
  "limit": 0,
  "offset": 0,
  "data": [
    {
      "userId": "BTC_01",
      "score": "green",
      "lastActivity": "2008-09-15T15:53:00+05:00",
      "scoreUpdatedDate": "2008-09-15T15:53:00+05:00",
      "riskScore": "LOW"
    },
    ...
  ]
}

Optional pagination parameters

Parameter name	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

Response body

The response body will be a brief summary of the list of User IDs in the Chainalysis KYT system.

score is based on the legacy user risk model, while riskScore reflects the current model that was implemented in late May 2020. We recommend using the riskScore property going forward. Find more information about the user risk model here (login required).

A successful request will return the following JSON response and properties for all users.

Property name	Type	Description
userId	String	The User ID of the user.
score	String	The score of the User ID as green, amber, or red. Based on the legacy user risk model.
lastActivity	ISO-8601 Date String	The date of the User ID's last tracked activity.
scoreUpdatedDate	ISO-8601 Date String	The date the score was last calculated. This field will update whenever activity occurs that could affect the user risk score, including: a new transfer is registered, a new alert is generated, or an alert status is changed.
riskScore	String	The overall score of the User ID as LOW, MEDIUM, HIGH, or SEVERE. Based on the new user risk model. We recommend using this property going forward.

Get a single user by {userId}

ENDPOINT

GET /v1/users/{userId}

This endpoint retrieves detailed information on a single user in the Chainalysis KYT system.

An example request for listing a single User ID, BTC_01, in the KYT system using curl would look like the following.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/users/BTC_01' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "userId": "BTC_01",
  "score": "green",
  "lastActivity": "2008-09-15T15:53:00+05:00",
  "scoreUpdatedDate": "2008-09-15T15:53:00+05:00",
  "riskScore": "LOW",
  "creationDate": "2008-09-15T15:53:00+05:00",
  "exposureDetails": [
    {
      "cluster": {
        "name": "Coinbase.com",
        "category": "exchange"
      },
      "sentIndirectExposure": 25,
      "sentDirectExposure": 0,
      "receivedIndirectExposure": 25,
      "receivedDirectExposure": 0
    }
  ]
}

Required parameters

Parameter name	Type	Description
userId	String	The userId to query.

Response body

A successful request will return the following JSON response and properties for all users.

Property name	Type	Description
userId	String	The User ID of the user.
score	String	The score of the User ID as green, amber, or red. Based on the legacy user risk model.
lastActivity	ISO-8601 Date String	The date of the user's last tracked activity.
scoreUpdatedDate	ISO-8601 Date String	The date the score was last calculated. This field will update whenever activity occurs that could affect the user risk score, including: a new transfer is registered, a new alert is generated, or an alert status is changed.
riskScore	String	The overall score of the User ID as LOW, MEDIUM, HIGH, or SEVERE. Based on the new user risk model. We recommend using this property going forward.
creationDate	ISO-8601 Date String	The date the user was created in the KYT system.
exposureDetails	Array	An array of details about the user's exposure to risk.
cluster	Object	The identification of a group of addresses estimated by Chainalysis to be controlled by a single entity.
cluster.name	String	The name of the named cluster.
cluster.category	String	The category the named cluster belongs to.
sentIndirectExposure	Number	Total Sent Indirect Exposure for the user in USD.
sentDirectExposure	Number	Total Sent Direct Exposure for the user in USD.
receivedIndirectExposure	Number	Total Received Indirect Exposure for the user in USD.
receivedIndirectExposure	Number	Total Sent Indirect Exposure for the user in USD.

score is based on the legacy user risk model, while riskScore reflects the current model that was implemented in late May 2020. We recommend using the riskScore property going forward. Find more information about the user risk model here (login required).

Rename users

ENDPOINT

POST /v1/users/rename

This endpoint renames a userId in the KYT system.

An example request for renaming a User ID from test_1 to user_1 in the KYT system using curl would look like the following.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/users/rename' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'
  --header 'Content-Type: application/json' \
  --data '[{"from":"test_1", "to":"user_1"},{"from":"test_1", "to":"user_1"}]'

The above command returns an empty JSON response.

Request body

From is the userId that you would like to rename.
"from": "test_1"

To is the new userId.
It must be a new userId and not currently exist in the KYT system. Using an existing userId will result in a 400 error.
"to": "user_1"

The request body needs to be in the form of an array: [{"from":"test_1", "to":"user_1"}]. The request supports up to 1000 renames at a time.

Response body

The endpoint returns an empty JSON response.

Alerts

This endpoint allows you to retrieve alerts as well as update an alerts status and comment.

GET /v1/alerts/ POST /v1/alerts/{alertIdentifier}/statuses

Alerts in KYT are raised for risky transfers on your platform. A single transfer can trigger multiple alerts. Alert levels include Severe, High, Medium, and Low, and are based on factors such as category, service, direct versus indirect exposure, direction, and amount.

Get all alerts

This endpoint retrieves information on all alerts that have been raised within your organization.

ENDPOINT

GET /v1/alerts/

An example request for listing all alerts in the KYT system using curl would look like the following.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/alerts/' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured like this:

{
  "total": 1000,
  "limit": 0,
  "offset": 0,
  "data": [
    {
      "alertAmountUsd": 132.50,
      "transactionHash": "b765440e872ab6e2521694d10465415bda4adf8ed7fc2fdafb6d39bd17c5fddf",
      "level": "HIGH",
      "exposureType": "DIRECT",
      "alertStatus": "Flagged",
      "transferReportedAt": "2017-01-05T14:23:00.397Z",
      "alertIdentifier": "a6a5d0f8-9753-11e9-a517-ebce3e967522",
      "service": "Silk Road Marketplace",
      "alertStatusCreatedAt": "2020-01-14T13:57:58.713226Z",
      "transferReference": "b765440e872ab6e2521694d10465415bda4adf8ed7fc2fdafb6d39bd17c5fddf:1",
      "userId": "mtgox_ghosts",
      "alertStatusCreatedBy": null,
      "valid": true,
      "createdAt": "2019-06-17T17:39:41.550575Z",
      "transferOutputAddress": "1DP38CC2kf6ewUDaaVd9nBfuAD8SP15g2T",
      "validity": "VALID",
      "category": "darknet market",
      "transactionIndex": 1,
      "asset": "BTC",
      "direction": "SENT",
      "timestamp": "2011-06-18T08:22:21Z",
      "rule": ">$100 sent directly to darknet market",
      "minThreshold": 100,
      "maxThreshold": null
    },
    ...
  ]
}

Optional parameters

Parameter name	Type	Description
asset	String	Return all alerts for a specific asset.
createdAt_gte	ISO-8601 Date String	Return all alerts created greater than or equal to a specific date and time.
createdAt_lte	ISO-8601 Date String	Return all alerts created less than or equal to a specific date and time.
level	String	Filters alerts by alert level as SEVERE, HIGH, MEDIUM, and LOW (values must be in caps).
transferReference	String	Return all alerts associated with a specific transfer reference. See Transfer Reference Formats sorted by timestamp, createdAt, level, and alertAmountUsd. For example, createdAt sorts alerts by the date the alert was created. See below for more information about the sort parameter.
userId	String	Return all alerts for a specific user.

Using the createdAt_gte and createdAt_lte parameters
You can use createdAt_gte and createdAt_lte to specify a date range. You can also keep track of your newest alerts by querying for all alerts after a given time (createdAt_gte), store the time you made the query, then query it again later for all alerts since the initial query.

Using the sort parameter
The sort parameter determines the order that the alerts are returned. timestamp, createdAt, level, and alertAmountUsd are supported. For example, returning all alerts sorted by amount from highest to lowest value (descending) looks like: ?sort=alertAmountUsd%20desc.

Get all alerts from a single transfer
To return all alerts on a single transfer, it is recommended to use the userId, asset, and transferReference parameters all at once. In rare circumstances, the same transferReference can exist for multiple assets or multiple users.

Optional pagination parameters

Parameter name	Type	Description
limit	Int	A limit on the number of objects returned.
offset	Int	The position of the first object returned in the response. The default is 0, which starts the page at the first result.

Response body

The response is sorted by alertStatusCreatedAt by default. Note that when an alert is created, the alertStatus is set to Unreviewed and the alertStatusCreatedAt is set to the time the alert was created.

A successful request will return the following JSON response and properties for all alerts:

Property name	Type	Description
alertAmountUsd	Int	The amount of the transfer that triggered the alert in USD.
transactionHash	String	The transaction hash of the transfer that triggered the alert.
level	String	The level of the alert as SEVERE, HIGH, MEDIUM, or LOW.
exposureType	String	The type of exposure of the transfer that triggered the alert as DIRECT or INDIRECT.
alertStatus	String	The status of the alert as Unreviewed, In Review, Flagged, No Review, or Dismissed.
transferReportedAt	ISO-8601 Date String	The date the transfer was registered in KYT.
alertIdentifier	String	The alert ID.
service	String	The name of the counterparty in the transfer that triggered the alert. Note that the service will be null for indirect exposure alerts, as you can have multiple indirect counterparties contributing to one alert.
alertStatusCreatedAt	ISO-8601 Date String	The date the alert status was last changed.
transferReference	String	The transaction hash and index or output address of the transfer that triggered the alert.
userId	String	The User ID of the user.
alertStatusCreatedBy	String	The username of the person in your organization that changed the alert status.
valid	Boolean	Indicates whether the alert is valid.
createdAt	ISO-8601 Date String	The date the alert was created.
transferOutputAddress	String	The address to which the asset was sent.
validity	String	The status of the alert, either VALID, INVALID, or REVALID.
category	String	The alert category.
transactionIndex	String	The 0-indexed number of the transfer in the transaction that caused the alert.
asset	String	The asset used in the transfer.
direction	String	The direction of the transfer that triggered the alert as SENT or RECEIVED.
timestamp	ISO-8601 Date String	The date of the transfer on the blockchain that caused the alert.
rule	String	An explanation of why the transfer caused an alert.
minThreshold	Int	The minimum amount in USD of the alert rule.
maxThreshold	Int	The maximum amount in USD of the alert rule.

Post alert statuses and comments

This endpoint sends and changes an alert status and comment you provide for a given alert.

ENDPOINT

POST /v1/alerts/{alertIdentifier}/statuses

An example request to send an alert status and comment in the KYT system using curl would look like the following.

curl -X POST 'https://test.chainalysis.com/api/kyt/v1/alerts/1a895b44-2a78-11eb-978c-5bb1dd49843e/statuses' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json' \
  --data '{"status": "No Review", "comment": "Test comment"}'

The above command returns JSON structured like this:

{
    "alertIdentifier": "1a895b44-2a78-11eb-978c-5bb1dd49843e",
    "alertStatus": "No Review",
    "alertComment": "Test comment",
    "alertStatusCreatedBy": "user@example.com",
    "alertStatusCreatedAt": "2021-05-24T19:36:08.593571Z"
}

Required parameters

Parameter name	Type	Description
alertIdentifier	String	A unique identifier that references the alert.

Request body

Define the alert status, whether Unreviewed, In Review, Flagged, No Review, or Dismissed.

• To submit only a comment and not change the alert's status, include the alert's current status in your request body.

"status": "No Review"

Include the comment you want to specify for the given alert.

"comment": "Test comment"

Response body

A successful request will return the following JSON response and properties for the given alert:

Property name	Type	Description
alertIdentifier	String	A unique identifier that references the alert.
alertStatus	String	The alert status you submitted in your request body whether Unreviewed, In Review, Flagged, No Review, or Dismissed.
alertComment	String	The comment you submitted in your request body.
alertStatusCreatedBy	String	The email address of the KYT account that changed the alert status and/or added a comment.
alertStatusCreatedAt	ISO-8601 Date String	The date the alert status was created.

Resources

Error handling

All successful requests to the KYT API will return a 200 response code.

The KYT API uses the following error codes to identify a bad request:

Error code	Meaning	Description
400	Bad request	May refer to using testnet data, or data in an illegal format - for example non-valid JSON or an object instead of a list.
403	Forbidden	May indicate that your API Key is expired or not being sent properly as the value of the Token HTTP header.
404	Not found	Indicates that you have attempted to reach a page which does not exist - for example either a nonexistent endpoint or a user that does not exist.
406	Not acceptable	Means you are requesting a response format that the API cannot produce. We currently only support JSON output.
409	Conflict	Indicates that there is a conflict of association with another user, such as overlapping addresses.
500	Internal server error	Indicates an error with the server. For POST /transfers/sent and /transfers/received, you should try the request again to ensure the transaction has been screened by Chainalysis. Contact support@chainalysis.com with questions.
503	Service unavailable error	Indicates that the server may be unavailable or not ready to handle the request. For POST /transfers/sent and /transfers/received, you should try the request again later to ensure the transaction has been screened by Chainalysis. Contact support@chainalysis.com with questions.

Glossary

The Chainalysis KYT API uses the following terms for all Asset types tracked:

Address

An Address is a cryptographic hash of a Public and Private key pair that holds value for a given cryptocurrency or token Asset. Bitcoin and other cryptocurrencies that use UTXO based transactions use what is called an "Address". Ethereum and other currencies that use Account based transactions use what is known as an "Account".

Asset

An Asset in KYT is the cryptocurrency or token being tracked (Bitcoin, Tether, etc).

A current list of supported assets by the KYT API can retrieved using the assets endpoint. You can also send data for additional assets and as soon as KYT fully supports the coin, the system will automatically backfill any data you've sent. A list of all assets you can send appears below.

Transfer

A Transfer is the part of a transaction that transfers value from one address to another address. For some asset types like Ethereum each transaction is one transfer, but for asset types like Bitcoin a transaction can contain multiple transfers.

Deposit Address

Deposit addresses are addresses that you manage on behalf of your users, where they can deposit value to your service. A deposit address is always associated with exactly one user, and should never be reused for another user, but a user can have multiple deposit addresses. Deposit addresses can be registered even before they have received value.

Withdrawal Address

Withdrawal addresses are foreign Bitcoin addresses outside your service, to which the user intends to send value. Multiple users might send value to the same withdrawal addresses.

Withdrawal addresses should be registered as early as possible for best results, for instance right when the address is pasted into a withdrawal form. When registering a withdrawal address a real-time rating of the address as a recipient of value is returned. This allows you to take action on suspicious behavior immediately.

Sent Transfer

Sent transfers are the value that your service sends on behalf of a user when the user makes a withdrawal from your service. Regardless of asset type, the transfer will be part of a transaction. A transfer can be registered as soon as its transaction has been created, and even before it has been broadcast to a blockchain. Once a transfer has been registered, KYT will track it.

For some asset types, the transfer will have to “settle” before it is processed by KYT; in Bitcoin we will wait until the transaction is 5 blocks deep to make sure the risk score reflects stable data. Registered transfers that remain unsettled for too long will automatically discard the registered transfer after a timeout of several days.

Received Transfer

Received transfers are the value transfers that your service receives on behalf of a user into their deposit address. Received transfers are registered and processed according to the same rules as sent transfers.

User IDs

All user activity is recorded in the KYT API under a user ID. The API allows you to use any unique user ID within the following constraints:

• The userID must be between 1 and 200 characters.
• Allowed characters are -_:a-zA-Z0-9.
• You should use the same user ID for a user across all supported asset types, as this allows KYT to assess the user risk based on his or her combined activity.
• You are encouraged to use an ID which you can relate to your internal system, as this allows your compliance team to quickly find and monitor the users in KYT.

KYT

KYT is the abbreviation for Know Your Transaction.

Cluster

A cluster is a collection of cryptocurrency addresses that Chainalysis has identified to be controlled by one entity

UTXO

UTXO is the abbreviation for Unspent Transaction Output. UTXO is the method that some cryptocurrencies use to keep track of transactions in their transaction ledger in the Blockchain. UTXO is the amount of unspent cryptocurrency that can be spent in new transactions.

Examples of UXTO transaction based cryptocurrencies include:

• Bitcoin
• Bitcoin Cash
• Litecoin

Account

An Account, sometimes known as a Balance, is the method that some cryptocurrencies and tokens use to keep track of transactions in their transaction ledger in the Blockchain. The Account transaction method keeps track of the total currency in the Account in a global state. This transaction method allows for Smart Contracts to be created that keep track of different states to perform different tasks based on the state.

Examples of Account transaction based cryptocurrencies include:

• Ethereum
• Paxos Standard Token
• TrueUSD
• Tether

Assets

HTTP request

An example request for listing all assets.

curl -X GET 'https://test.chainalysis.com/api/kyt/v1/assets' \
  --header 'Token: <API_KEY>' \
  --header 'Accept: application/json'

The above command returns JSON structured as below. Note that the "data" array would typically display the data for all assets but has been truncated for this example.

[
    {
        "symbol": "AUDX",
        "name": "Etoro AUD"
    },
    {
        "symbol": "BCH",
        "name": "Bitcoin Cash"
    },
    {
        "symbol": "BNB",
        "name": "Binance Coin"
    },
    {
        "symbol": "BTC",
        "name": "Bitcoin"
    }
    ...
]

GET https://test.chainalysis.com/api/kyt/v1/assets

Returns a list of cryptocurrencies supported in the KYT API and the corresponding symbol.

For each asset, we return the asset’s symbol in canonical form, ie. BTC, not btc or btx, and the name of the asset, ie. Bitcoin. See a list of all supported assets below.

Fully-supported assets

The following assets are fully supported in KYT. Read more about transfer formats here.

Symbol	Asset	ERC-20 token?	Transfer format reference
AAVE	Aave	✓	"transaction hash:output address"
ALGO	Algorand		"transaction hash:output address"
AMPL	Ampleforth	✓	"transaction hash:output address"
AUDX	Etoro AUD	✓	"transaction hash:output address"
BAT	Basic Attention Token	✓	"transaction hash:output address"
BCH	Bitcoin Cash		Output address format "transaction hash:output address" Or Output index format "transaction hash:output index"
BNB	Binance Coin (ERC-20)	✓	"transaction hash:output address"
BNT	Bancor	✓	"transaction hash:output address"
BTC	Bitcoin		Output address format "transaction hash:output address" Or Output index format "transaction hash:output index"
BUSD	Binance USD	✓	"transaction hash:output address"
CADX	Etoro CAD	✓	"transaction hash:output address"
cBAT	Compound Basic Attention Token	✓	"transaction hash:output address"
cDAI	Compound Dai	✓	"transaction hash:output address"
CEL	Celsius	✓	"transaction hash:output address"
CELR	Celer Network	✓	"transaction hash:output address"
cETH	Compound Ethereum	✓	"transaction hash:output address"
CGT	CACHE Gold	✓	"transaction hash:output address"
CHFX	Etoro CHF	✓	"transaction hash:output address"
CHZ	chiliZ	✓	"transaction hash:output address"
CNYX	Etoro CNY	✓	"transaction hash:output address"
COMP	Compound	✓	"transaction hash:output address"
cREP	Compound Augur	✓	"transaction hash:output address"
CRO	Crypto.com (CRO)	✓	"transaction hash:output address"
CRPT	Crypterium	✓	"transaction hash:output address"
CRV	Curve	✓	"transaction hash:output address"
cSAI	Compound Sai	✓	"transaction hash:output address"
cUSDC	Compound USD Coin	✓	"transaction hash:output address"
CVC	Civic	✓	"transaction hash:output address"
cWBTC	Compound Wrapped BTC	✓	"transaction hash:output address"
cZRX	Compound ZRX	✓	"transaction hash:output address"
DAI	Dai	✓	"transaction hash:output address"
DASH	Dash		Output address format "transaction hash:output address" Or Output index format "transaction hash:output index"
DRGN	Dragonchain	✓	"transaction hash:output address"
ELF	aelf	✓	"transaction hash:output address"
ENG	Enigma	✓	"transaction hash:output address"
ENJ	Enjin Coin	✓	"transaction hash:output address"
EOS	EOS		Output address format "transaction hash:output address" Or Output index format "transaction hash:output index"
ETH	Ethereum	✓	"transaction hash:output address"
ETHLend	Aave	✓	"transaction hash:output address"
EURS	Stasis Euro	✓	"transaction hash:output address"
EURX	Etoro EUR	✓	"transaction hash:output address"
FTT	FTX Token	✓	"transaction hash:output address"
GBPX	Etoro GBP	✓	"transaction hash:output address"
GLDX	Etoro GLD	✓	"transaction hash:output address"
GNO	Gnosis	✓	"transaction hash:output address"
GNT	Golem	✓	"transaction hash:output address"
GUSD	Gemini Dollar	✓	"transaction hash:output address"
GYEN	GMO Yen	✓	"transaction hash:output address"
HOT	Holo Token	✓	"transaction hash:output address"
HT	Huobi Token	✓	"transaction hash:output address"
HUSD	Hot USD	✓	"transaction hash:output address"
IDRT	Rupiah Token	✓	"transaction hash:output address"
JPYX	Etoro YEN	✓	"transaction hash:output address"
KCS	Kucoin Shares	✓	"transaction hash:output address"
KNC	Kyber Network	✓	"transaction hash:output address"
LEO	UNUS SED LEO	✓	"transaction hash:output address"
LINK	Chainlink	✓	"transaction hash:output address"
LOOM	Loom Network	✓	"transaction hash:output address"
LRC	LoopringCoin	✓	"transaction hash:output address"
LTC	Litecoin		Output address format "transaction hash:output address" Or Output index format "transaction hash:output index"
MANA	Decentraland	✓	"transaction hash:output address"
MATIC	Matic Network	✓	"transaction hash:output address"
MCO	Crypto.com (MCO)	✓	"transaction hash:output address"
MKR	Maker	✓	"transaction hash:output address"
MLN	Melon	✓	"transaction hash:output address"
MTL	Metal	✓	"transaction hash:output address"
NEXO	Nexo	✓	"transaction hash:output address"
NMR	Numeraire	✓	"transaction hash:output address"
NPXS	Pundi X	✓	"transaction hash:output address"
NZDX	Etoro NZD	✓	"transaction hash:output address"
OKB	Okex Exchange Token	✓	"transaction hash:output address"
OMG	OmiseGO	✓	"transaction hash:output address"
OXT	Orchid	✓	"transaction hash:output address"
PAX	Paxos Standard	✓	"transaction hash:output address"
PAXG	Paxos Gold	✓	"transaction hash:output address"
PAY	TenX	✓	"transaction hash:output address"
POWR	PowerLedger	✓	"transaction hash:output address"
QNT	Quant	✓	"transaction hash:output address"
RCN	Ripio Credit Network	✓	"transaction hash:output address"
REN	Republic	✓	"transaction hash:output address"
RENBTC	renBTC	✓	"transaction hash:output address"
RLC	iExec Token	✓	"transaction hash:output address"
RUBX	Etoro RUB	✓	"transaction hash:output address"
SAI	Single Collateral DAI	✓	"transaction hash:output address"
SALT	SALT	✓	"transaction hash:output address"
SENT	Sentinel	✓	"transaction hash:output address"
SLVX	Etoro SLV	✓	"transaction hash:output address"
SNT	Status	✓	"transaction hash:output address"
STORJ	Storj	✓	"transaction hash:output address"
sUSD	SynthetixUSD	✓	"transaction hash:output address"
SUSHI	SushiSwap	✓	"transaction hash:output address"
TGBP	TrueGBP	✓	"transaction hash:output address"
TUSD	TrueUSD	✓	"transaction hash:output address"
UNI	UniSwap	✓	"transaction hash:output address"
USDC	USD Coin	✓	"transaction hash:output address"
USDEX	Etoro USD	✓	"transaction hash:output address"
USDT	USD Tether Omni		"transaction hash"
USDT_ETH	USD Tether Ether	✓	"transaction hash:output address"
VGX	Voyager Token	✓	"transaction hash:output address"
WBTC	Wrapped Bitcoin	✓	"transaction hash:output address"
WETH	Wrapped Ether	✓	"transaction hash:output address"
WTC	Waltonchain	✓	"transaction hash:output address"
XAUT	Tether Gold	✓	"transaction hash:output address"
XCHF	CryptoFranc	✓	"transaction hash:output address"
XRP	XRP		"transaction hash" Or “transaction hash:output address” The output address is required when there is more than one receiving party, otherwise KYT records the receiving party as the 0 index (the first listed).
YFI	Yearn.finance	✓	"transaction hash:output address"
ZEC	Zcash		Output address format "transaction hash:output address" Or Output index format "transaction hash:output index"
ZRX	0x	✓	"transaction hash:output address"
ZUSD	Z.com USD	✓	"transaction hash:output address"

Chainalysis Data Network assets

You can send data for additional assets that are not yet fully supported with the POST /v2/users/{userId}/transfers/ endpoint. As soon as KYT supports the coin, the system will automatically backfill any data you've sent and you only have to upload this data once. A list of all assets you can send appears below.

Some ERC-20 tokens may require additional input, which are specified below. All ERC-20 tokens must have a valid transaction hash. UTXO based cryptocurrencies must reference a transaction hash and a corresponding output address or transaction hash index. Read more about transfer formats here.

Note that the response when sending additional assets via the API is an empty JSON object. The KYT API does not validate addresses for coins we do not yet support.

Symbol	Asset	ERC-20?	Transfer format reference
1ST	Firstblood	✓	"transaction hash:output address"
ABT	ArcBlock	✓	"transaction hash:output address"
ABYSS	Abyss	✓	"transaction hash:output address"
ADA	Cardano		"transaction hash:output address"
ADD	ADD	✓	"transaction hash:output address"
ADT	adToken	✓	"transaction hash:output address"
ADX	AdEx	✓	"transaction hash:output address"
AERGO	Aergo	✓	"transaction hash:output address"
AGI	SingularityNET	✓	"transaction hash:output address"
AIDf	AidCoin	✓	"transaction hash:output address"
AION	AION	✓	"transaction hash:output address"
AKRO	Akropolis	✓	"transaction hash:output address"
ANKR	Ankr	✓	"transaction hash:output address"
ANT	Aragon	✓	"transaction hash:output address"
ART	Maecenas	✓	"transaction hash:output address"
AST	AirSwap	✓	"transaction hash:output address"
ATD	Atidium	✓	"transaction hash:output address"
ATM	Atonomi	✓	"transaction hash:output address"
ATOM	Cosmos		"transaction hash"
AUC	Auctus	✓	"transaction hash"
AVT	AVT	✓	"transaction hash"
BBN	BBN	✓	"transaction hash:output address"
BCI	Bitcoin Interest		"transaction hash:output address"
BCPT	BlockMason Credit Protocol	✓	"transaction hash:output address"
BFT	BnkToTheFuture	✓	"transaction hash:output address"
BKX	Bankex	✓	"transaction hash:output address"
BLOC	Blockcloud	✓	"transaction hash:output address"
BLT	Bloom	✓	"transaction hash:output address"
BORA	BORA	✓	"transaction hash:output address"
BOX	ContentBox Token	✓	"transaction hash:output address"
BOXX	Blockparty	✓	"transaction hash:output address"
BRZ	BRZ Token	✓	"transaction hash:output address"
BSV	Bitcoin SV		"transaction hash:output address"
BTG	Bitcoin Gold		"transaction hash:output address"
BTT	BitTorrent		"transaction hash:output address"
BTU	BTU Protocol	✓	"transaction hash:output address"
BWX	Blue Whale eXchange	✓	"transaction hash:output address"
CBC	CashBet	✓	"transaction hash:output address"
CBT	CommerceBlock	✓	"transaction hash:output address"
CFI	Cofoundit	✓	"transaction hash:output address"
CHR	Chromia	✓	"transaction hash:output address"
CLO	Callisto	✓	"transaction hash:output address"
CMCT	Crowd Machine	✓	"transaction hash:output address"
CND	Cindicator	✓	"transaction hash:output address"
CNHT	Tether CNH	✓	"transaction hash:output address"
CNN	CNN Token	✓	"transaction hash:output address"
CPT	Contents Protocol	✓	"transaction hash:output address"
CS	Credits	✓	"transaction hash:output address"
CTXC	Cortex	✓	"transaction hash:output address"
DADI	DADI	✓	"transaction hash:output address"
DATA	Steamr DATAcoin	✓	"transaction hash:output address"
DENT	Dent	✓	"transaction hash:output address"
DGB	DIGIBYTE	✓	"transaction hash:output address"
DGD	DigixDAO	✓	"transaction hash:output address"
DGX	Digix Gold Token	✓	"transaction hash:output address"
DMT	DMarket	✓	"transaction hash:output address"
DNT	district0x	✓	"transaction hash:output address"
DT	Dragon Token	✓	"transaction hash:output address"
DTA	Data	✓	"transaction hash:output address"
DTH	Dether	✓	"transaction hash:output address"
DUSK	Dusk Network	✓	"transaction hash:output address"
EDG	Edgeless	✓	"transaction hash:output address"
EDO	Eidoo	✓	"transaction hash:output address"
EDR	Endor	✓	"transaction hash:output address"
EOX	EOX	✓	"transaction hash"
EPIQ	Everipedia	✓	"transaction hash:output address"
ESS	Essentia	✓	"transaction hash"
ETP	Ethereum Platinum	✓	"transaction hash"
EURT	Tether EUR	✓	"transaction hash"
EVT	Ethfinex Voting Token	✓	"transaction hash"
FOA	Foam Token	✓	"transaction hash:output address"
FSN	Fusion	✓	"transaction hash:output address"
FTM	Fantom	✓	"transaction hash:output address"
FTT	FTX Com	✓	"transaction hash:output address"
FUN	FunFair	✓	"transaction hash:output address"
FX	Function X	✓	"transaction hash:output address"
FXC	Flexacoin	✓	"transaction hash:output address"
GAM	Gambit	✓	"transaction hash:output address"
GEN	DAOStack	✓	"transaction hash:output address"
GEO	GeoCoin	✓	"transaction hash:output address"
GOT	GOToken	✓	"transaction hash:output address"
GTO	Gifto	✓	"transaction hash:output address"
GTX	Gate IO	✓	"transaction hash:output address"
GUP	Guppy	✓	"transaction hash:output address"
HEDG	HedgeTrade	✓	"transaction hash:output address"
HINT	Hintchain	✓	"transaction hash:output address"
HMQ	Humaniq	✓	"transaction hash:output address"
HOLD	Hold	✓	"transaction hash:output address"
HST	Decision Token	✓	"transaction hash:output address"
HXRO	Hxro	✓	"transaction hash:output address"
HYDRO	Hydro	✓	"transaction hash:output address"
IHT	I-House Token	✓	"transaction hash:output address"
IMP	Ether Kingdoms Token	✓	"transaction hash:output address"
INT	Internet Node Token	✓	"transaction hash:output address"
IOTA	IOTA		"transaction hash:output address"
IOTX	IoTeX	✓	"transaction hash:output address"
ITM	Intimate	✓	"transaction hash:output address"
JNT	Jibrel	✓	"transaction hash:output address"
KAN	Kan	✓	"transaction hash:output address"
LAMB	Lambda	✓	"transaction hash:output address"
LBA	Cred	✓	"transaction hash:output address"
LBTC	Liquid BTC	✓	"transaction hash:output address"
LEO-ERC20	UNUS SED LEO ERC20	✓	"transaction hash:output address"
LUN	Lunyr	✓	"transaction hash:output address"
LYM	Lympo tokens	✓	"transaction hash:output address"
MAN	Matrix AI Network	✓	"transaction hash:output address"
MEDX	MediBloc	✓	"transaction hash:output address"
MET	Metronome	✓	"transaction hash:output address"
MFT	Mainframe	✓	"transaction hash:output address"
MITH	Mithril Token	✓	"transaction hash:output address"
MOC	Mossland	✓	"transaction hash:output address"
MORE	More	✓	"transaction hash:output address"
MTN	MedicalChainToken	✓	"transaction hash:output address"
MGO	MobileGo	✓	"transaction hash:output address"
MOC	Mossland	✓	"transaction hash:output address"
MTO	Meetone	✓	"transaction hash:output address"
NANO	NANO	✓	"transaction hash:output address"
NCASH	Nucleus Vision	✓	"transaction hash:output address"
NEC	Ethfinex Nectar Token	✓	"transaction hash:output address"
NEO	NEO		"transaction hash:output address"
NGC	Naga	✓	"transaction hash:output address"
NIOX	Autonio	✓	"transaction hash:output address"
NKN	NKN	✓	"transaction hash:output address"
NXC	Nexium	✓	"transaction hash:output address"
OCEAN	Ocean Protocol	✓	"transaction hash:output address"
OCN	Odyssey	✓	"transaction hash:output address"
ODE	ODEM Token	✓	"transaction hash:output address"
OGO	Origo	✓	"transaction hash:output address"
ONL	On.Live	✓	"transaction hash:output address"
OMNI	OMNI	✓	"transaction hash:output address"
ORBS	Orbs	✓	"transaction hash:output address"
ORS	ORS Token	✓	"transaction hash:output address"
OST	Simple Token	✓	"transaction hash:output address"
PAI	PAI Project	✓	"transaction hash:output address"
PASS	Blockpass	✓	"transaction hash:output address"
PI	PCHAIN	✓	"transaction hash:output address"
PLA	PlayChip	✓	"transaction hash:output address"
PMA	PumaPay	✓	"transaction hash:output address"
PNK	Kleros Token	✓	"transaction hash:output address"
POLY	Polymath	✓	"transaction hash:output address"
POA	POA Network	✓	"transaction hash:output address"
PRO	Propy	✓	"transaction hash:output address"
PROM	Prometeus	✓	"transaction hash:output address"
PTON	Foresting	✓	"transaction hash:output address"
PTOY	Patientory	✓	"transaction hash:output address"
PXL	Pixel	✓	"transaction hash:output address"
QASH	QASH	✓	"transaction hash:output address"
QTUM	Qtum	✓	"transaction hash:output address"
QWARK	Qwark	✓	"transaction hash:output address"
RBTC	RBTC	✓	"transaction hash:output address"
RDN	Raiden	✓	"transaction hash:output address"
REQ	Request Network	✓	"transaction hash:output address"
RFR	Refereum	✓	"transaction hash:output address"
RIF	RIF	✓	"transaction hash:output address"
RRB	RenrenBit Token	✓	"transaction hash:output address"
RRT	Recovery Rights Token		"transaction hash:output address"
RTE	Rate3	✓	"transaction hash:output address"
SAN	SANtiment Network Token	✓	"transaction hash:output address"
SEE	SEER	✓	"transaction hash:output address"
SEN	ConsenusAI		"transaction hash:output address"
SERV	Serve	✓	"transaction hash:output address"
SNGLS	SingularDTV	✓	"transaction hash:output address"
SNX	Synthetix	✓	"transaction hash:output address"
SOLVE	Solve.Care	✓	"transaction hash:output address"
SPANK	Spank	✓	"transaction hash:output address"
SPC	SpaceChain	✓	"transaction hash:output address"
SPHR	Sphere	✓	"transaction hash:output address"
SPIN	SPIN Protocol	✓	"transaction hash:output address"
SPND	Spendcoin	✓	"transaction hash:output address"
SRN	Sirin Token	✓	"transaction hash:output address"
STEEM	Steem	✓	"transaction hash:output address"
STORM	Storm	✓	"transaction hash:output address"
STPT	Standard Tokenization Protocol	✓	"transaction hash:output address"
SWT	Swarm City Token	✓	"transaction hash:output address"
TEMCO	TEMCO	✓	"transaction hash:output address"
TIX	Blocktix	✓	"transaction hash:output address"
TKN	TokenCard	✓	"transaction hash:output address"
TNB	Time New Bank	✓	"transaction hash:output address"
TRAC	OriginTrail	✓	"transaction hash:output address"
TRIO	Tripio	✓	"transaction hash:output address"
TRST	Trustcoin	✓	"transaction hash:output address"
TRX	TRON		"transaction hash:output address"
TSHP	12Ships	✓	"transaction hash:output address"
TUDA	Tutor's Diary	✓	"transaction hash:output address"
UFR	Upfiring	✓	"transaction hash:output address"
UKG	UnikoinGold	✓	"transaction hash:output address"
UOS	Ultra	✓	"transaction hash:output address"
UP	UpToken	✓	"transaction hash:output address"
UPP	Sentinel Protocol	✓	"transaction hash:output address"
URAC	Uranus	✓	"transaction hash:output address"
USDK	USDK	✓	"transaction hash:output address"
USDS	StableUSD	✓	"transaction hash:output address"
UTK	UTRUST	✓	"transaction hash:output address"
UTNP	Universa	✓	"transaction hash:output address"
VDX	Vodi X	✓	"transaction hash:output address"
VEE	BLOCKv	✓	"transaction hash:output address"
VEN	VeChain	✓	"transaction hash:output address"
VET	VeChain	✓	"transaction hash:output address"
VIB	Viberate	✓	"transaction hash:output address"
VITE	Vite	✓	"transaction hash:output address"
VTI	Vetri	✓	"transaction hash:output address"
VSYS	v.systems		"transaction hash:output address"
WAVES	WAVES		"transaction hash"
WAX	Worldwide Asset Exchange	✓	"transaction hash:output address"
WIB	Wibson	✓	"transaction hash:output address"
WINGS	Wings DAO	✓	"transaction hash:output address"
WLO	Wollo	✓	"transaction hash:output address"
WPR	WePower	✓	"transaction hash:output address"
XD	Data Transaction Token	✓	"transaction hash:output address"
XDG	Dogecoin		"transaction hash:output address"
XLM	Stellar Lumens		"transaction hash"
XMR	Monero		Deposits - "transaction hash:tx index:receiving address:payment ID" Withdrawals - "transaction hash:tx index:withdrawal address:payment ID" The asset amount must be included as another field in the JSON
XNK	Ink Protocol	✓	"transaction hash:output address"
XRA	MasterXriba	✓	"transaction hash:output address"
XTZ	Tezos		"transaction hash:output address"
XVG	Verge	✓	"transaction hash:output address"
XYO	XYO	✓	"transaction hash:output address"
YEED	YGGDRASH	✓	"transaction hash:output address"
YOYOW	YOYOW	✓	"transaction hash:output address"
ZBT	ZBToken	✓	"transaction hash:output address"
ZCN	0Chain	✓	"transaction hash:output address"

Historic assets

Historic assets are assets that we have supported until a certain date due to factors such as coin migration, paused ingestion, or coin deprecation. For the assets listed below, KYT provides only the historical transaction values up to their specified date and does not yield new transfers.

Symbol	Asset	Date	Notes	ERC-20?	Transfer format reference
ETC	Ethereum Classic	2020-08-06	Paused ingestion following 51% attack.		"transaction hash:output address"
FET	Fetch.ai	2020-10-14	Migrated smart contract.	✓	"transaction hash:output address"
ICN	Iconomi	2019-12-31	Coin deprecation.	✓	"transaction hash:output address"
REP	Augur	2020-07-29	Migrated smart contract.	✓	"transaction hash:output address"
ZIL	Zilliqa	2020-02-26	Migrated to native chain.	✓	"transaction hash:output address"
